0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations
  • 0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations
  • 0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations
  • 0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations
  • 0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations
  • 0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations
  • 0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations
0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations

0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE ISO SGS
Model Number SM-RP
Product Details
Sheet Thickness:
0.12-0.3mm Color Sheet
Roller Stations:
22-24 Stations
Speed:
0-10 Meters/min
Main Motor Power:
7.5kw
Way Of Drive:
1.2 Inch Single Chain
Tolerance:
+-1.5mm
Highlight:

0.12mm Roof Panel Roll Forming Machine

,

24 stations Roof Panel Roll Forming Machine

,

24 stations roof sheet forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
65 days after deposit
Payment Terms
T/T L/C
Supply Ability
10 sets per months
Product Description

0.12mm-0.3mm Thickness Corrugated Roof Rooll Forming Machine with Chain Driven



Technical parameter:


Rolling Speed: 0-10m/min

Feeding width: 1000mm

Steel sheet Thickness: 0.12-0.3mm galvanized sheet

Control System: PLC

Roller Stations: about 22-24 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching

Motor Power: 7.5 kw main motor

Hydraulic power: 3kw

Hydraulic Pressure: 12Mpa

Tolerance: +1.5mm

Power supplier: According to Customer’s Requirements

Way Of Drive:1.2 inch single chain



Machine List



Machine list 5 tons hydraulic de-coiler 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Safety cover 1 set
Spare parts 1 set





working flow

0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 0

Profile Drawing

0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 1



Samples



0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 2

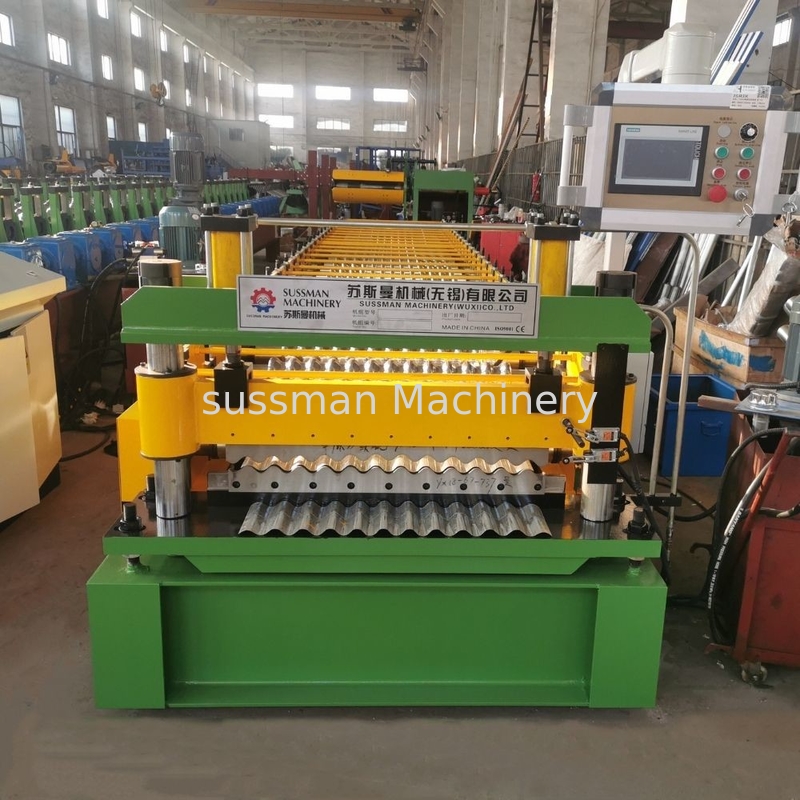

Machine Shows



0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 3

0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 4

0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 5

0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 6

Loading:



0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 7

0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 8

0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 9

0.12mm Thickness Roof Panel Roll Forming Machine 24 Stations 10
