Trapezoidal 12M/Min Metal Roofing Sheet Machine Chain Drive

Trapezoidal 12M/Min Metal Roofing Sheet Machine Chain Drive

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE ISO SGS
Model Number SM-RP
Product Details
Thickness:
0.3-0.8mm Color Sheet
Roller Statione:
About 20 Stations
Main Motor Power:
7.5kw
Color Steel Sheet Width:
1220mm
Material:
Aluminium, Galvanized
Drive:
Chain Drive
Highlight:

12M/min metal roofing sheet machine

,

Trapezoidal metal roofing sheet machine

,

Chain Drive corrugated metal roofing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
90 days after deposit
Payment Terms
T/T L/C
Supply Ability
10 sets per months
Product Description

0.3mm-0.8mm Thickness Trapezoidal Roof Panel Roll Forming Machine



This machine is made for a customer from Ecuador.





Technical parameter:


Item NO



Description



Offered specification
1.0 Roll forming machine
1.1 Rolling speed 12-15m/min(not include cutting time)
1.2 Rolling thickness 0.3mm-0.8mm
1.3 Raw material Color painted coils, Aluminium, Zinc, Galvanized
1.4 Main Motor 7.5KW
1.6 Dimension About 8000×1600×1200(mm)
1.7 Effective width 1025mm
1.8 Feeding Coil width 1220mm
1.9 Roller stations

About 20 stations


1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ76mm
1.12 Transmission By chain 1.2 inch
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 10m+-1.5mm
1.16 Hydraulic station 4kw






working flow

Uncoiling—Feedingwithguide——Roll forming—Cutting—Products collecting

Profile Drawing

Trapezoidal 12M/Min Metal Roofing Sheet Machine Chain Drive 0

Trapezoidal 12M/Min Metal Roofing Sheet Machine Chain Drive 1

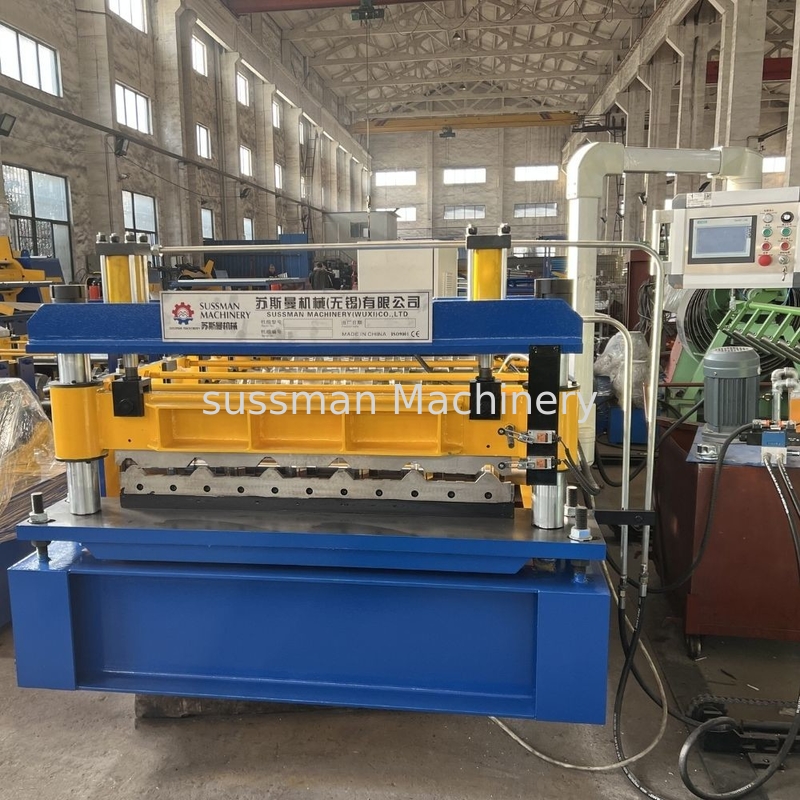

Machine Shows



Trapezoidal 12M/Min Metal Roofing Sheet Machine Chain Drive 2

Trapezoidal 12M/Min Metal Roofing Sheet Machine Chain Drive 3

Trapezoidal 12M/Min Metal Roofing Sheet Machine Chain Drive 4
