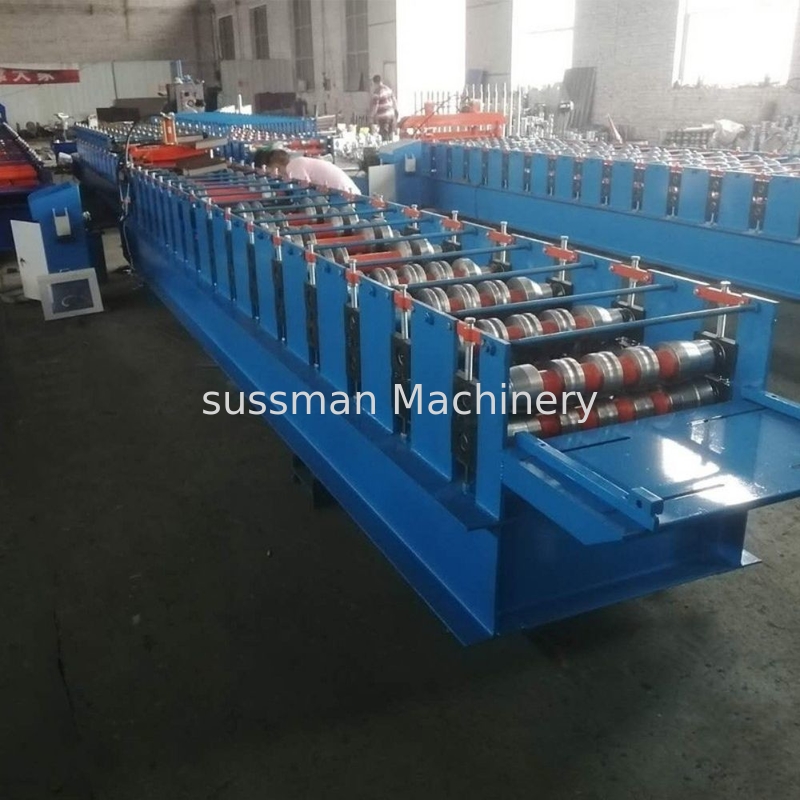

265mm Width Strip Lock Roll Forming Machine Bemo Standing Roof Machine

265mm Width Strip Lock Roll Forming Machine Bemo Standing Roof Machine

Standing Beam Bottom Technical Parameter


1.Passive uncoiler 5 ton
2.Main motor power:7.5KW
3.Motor power of hydraulic station:5.5KW
4.Forming station: about 20 stands
5.Main machine size:8.5 m×1.2m×1.25m
6.Forming speed: 10m/min
7.Diameter of roller shaft:¢76mm
8.Raw material width:355.6 mm
9.Roller surface coating with chrome:single face≥0.05mm
10.Forming thickness:0.3-0.8mm
11.profile according to GB/T12755-91 standards
12.material of cutting blade: Cr12
13.frequency: Delta
14. Computer (PLC)
15.computer operation board: OP320A
Standing Beam Main Components




Working Flow of Standing Beam
Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables




Profiles of Standing Beam




Customes Visiting




Loading Pic.


Our After-Sales Service Commitments

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipments:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;

2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.

3.If failure occurs in any of the machines during the “three guarantees” period(one year), three guarantees including the electricity parts, the rolls, the shafts and punching& cutting moulds, then, upon the Buyer’s request, Sussman will eliminate the failure;

4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
