Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-RP |
0.3mm-0.8mm Thickness Width Adjustable Wall Panel Roll Forming Machine
Technical Data
| Items | Specifications | |
| Material of coil | Material Thickness | 03-0.8mm PPGI |
| Max feeding width | 1070-1220mm | |
| De-coiler | 5 ton hydraulic | Finished width from 700-1000mm adjustable |
| Forming system | Rolling Speed | 10-12 m/min |
| Roller Stations | About 18 stations | |
| Roller Material | Gcr15 Steel with quenching | |
| Shaft Material |
45# Steel Diameter 75mm shaft
|
|
| Maim Motor Power | 7.5 kw | |
| Hydraulic cutting Power | 4 kw | |
| Moving- | LM rail ,Ball screw,-Hiwin | |
| Hydraulic Rexroth | system-Bosch | |
|
Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
380V, 60Z,3 phase
|
| Control System | PLC Panasonic |
Technological process:
Decoiler—Feedingwithguide—Cutting —Rollforming—Products collecting
Machine List:
| Machine list | 5 ton passive decoiler | 1 set |
| Hydraulic pre-cutting device | 1 set | |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Out table | 2 units |
Profile Drawing:

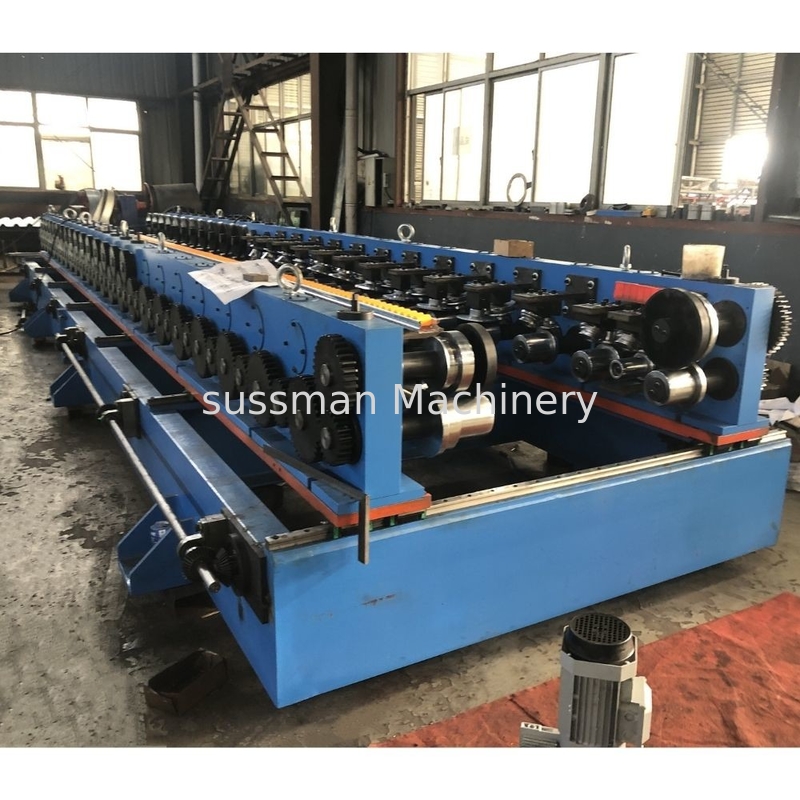

Machine Show:
Our After-Sales Service Commitments
Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts
The detailed measures are as follows:
1.Guidelines for installation and commissioning of equipments:
Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;
2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.
3.If failure occurs in any of the machines during the “three guarantees” period(one year), three guarantees including the electricity parts, the rolls, the shafts and punching& cutting moulds, then, upon the Buyer’s request, Sussman will eliminate the failure;
4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.
We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
