| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-RP |
1000mm-1220mm Width Adjustable Wall Panel Roll Forming Machine for PU Sandwich Panel Line
Technical Data
| Items | Specifications | |
| Material of coil | Material Thickness | 03-0.8mm PPGI |
| Max feeding width | 1070-1220mm | |
| De-coiler | 5 ton hydraulic | Finished width from 700-1000mm adjustable |
| Forming system | Rolling Speed | 10-12 m/min |
| Roller Stations | About 18 stations | |
| Roller Material | Gcr15 Steel with quenching | |
| Shaft Material |
45# Steel Diameter 75mm shaft
|
|
| Maim Motor Power | 7.5 kw | |
| Hydraulic cutting Power | 4 kw | |
| Moving- | LM rail ,Ball screw,-Hiwin | |
| Hydraulic Rexroth | system-Bosch | |
|
Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
380V, 60Z,3 phase
|
| Control System | PLC Panasonic |
Technological process:
Decoiler—Feedingwithguide—Cutting —Rollforming—Products collecting
Machine List:
| Machine list | 5 ton passive decoiler | 1 set |
| Hydraulic pre-cutting device | 1 set | |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Out table | 2 units |
Profile Drawing:

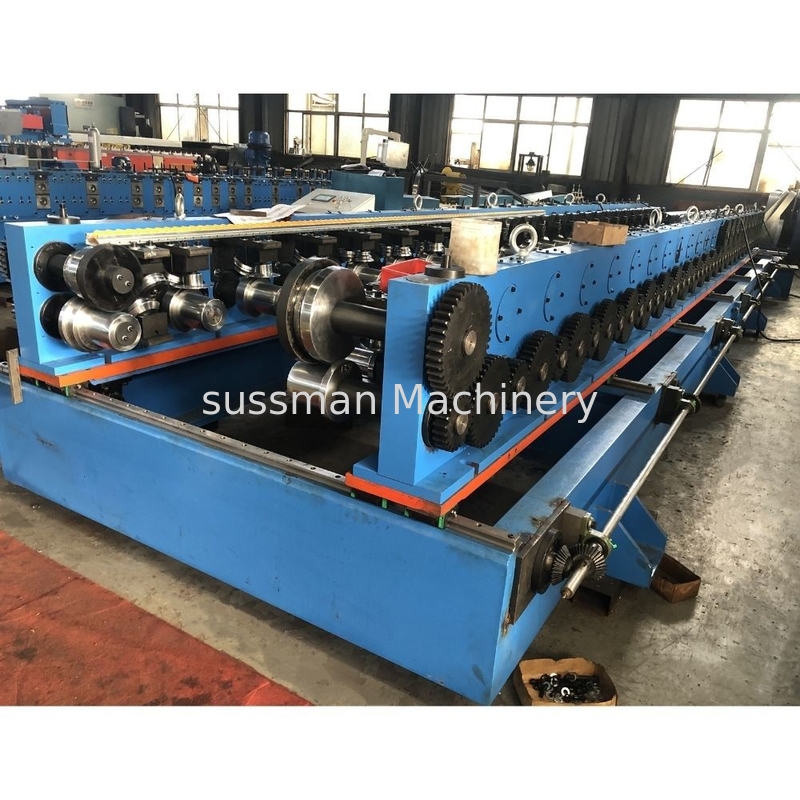

Machine Show:
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
