Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-GT |
CE Standard 0.3-0.8mm Thickness Aluminum Ppgi Ceiling Wall Panel Roll Forming Machine With Plc Control System
Technical Parameter
| Item NO |
Description |
Offered specification |
| 1.1 | Rolling speed | 10-12m/min |
| 1.2 | Rolling thickness | 0.4-0.8mm |
| 1.3 | Raw material | Galvanized steel or PPGI or Aluminum |
| 1.4 | Main motor | 7.5kw |
| 1.5 | Hydraulic motor | 5.5kw |
| 1.6 | dimension | About 9500×800×1000(mm) |
| 1.7 | Roller stations | About 25 rollers |
| 1.8 | Roller material | 45#forge steel, coated with chrome |
| 1.9 | Shaft diameter | Φ75mm,material is 45# forge steel |
| 1.10 | Transmission | By chain 1 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | 6m+-0.5mm |
| 1.14 | Frame | H type steel |
| 1.15 | Voltage | 380v, 50hz, 3phases or customized |
Main Component
| S.N |
Equipment name |
Quantity |
| 1. |
5Tons manual un-coiler
|
1 set |
| 2. |
Roll forming machine system |
1 set |
| 3. |
Hydraulic cutting |
1 set |
| 4. |
Control system (including control box) |
1 set |
| 5. |
Out tables |
2 sets |
Working Flow
Decoiler----Feeding with guide---Roll forming---Cutting---Run out tables
Application
Wall panel is widely used in constructions and buildings,it can be used to build roof and wall.
This kind of material can be used in many places such as gyms,warehouses,factories,etc.

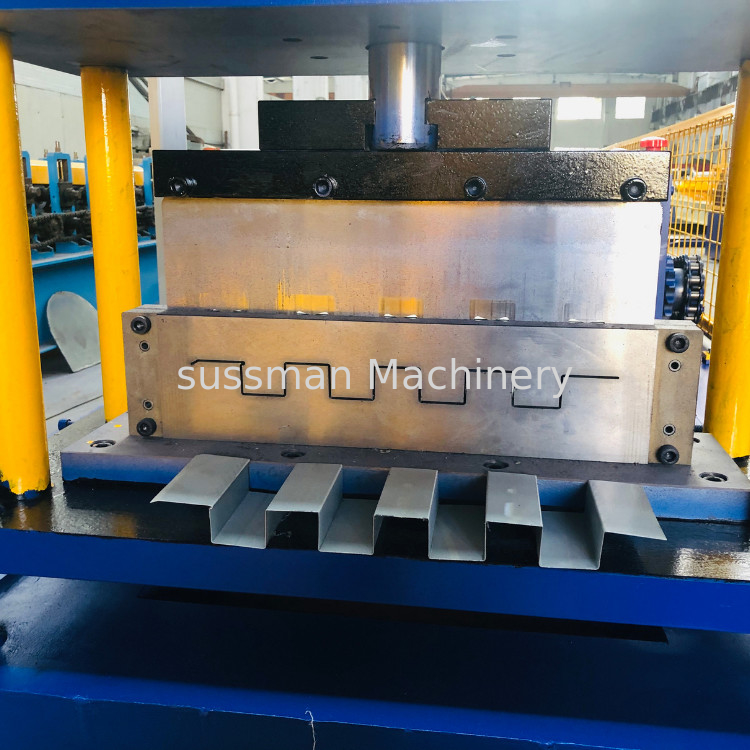

Machine photo
Wall panel machine is used for exterior wall cladding.It is a very moeder design for residential house.This design is used a lot in Australia,New zealand,PNG etc.Considering environmental friendly ,Now people use steel sheet to replace pvc one or wood one.
It is composed of manual decoiler,material feeding table,main roll forming,and automatic cutting.It is formed from prepainted galvanuzed coil,color coated gavalume etc.
The finished product of wall panel is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.
It has the advantage of beautiful, classical appearance and grace taste.
