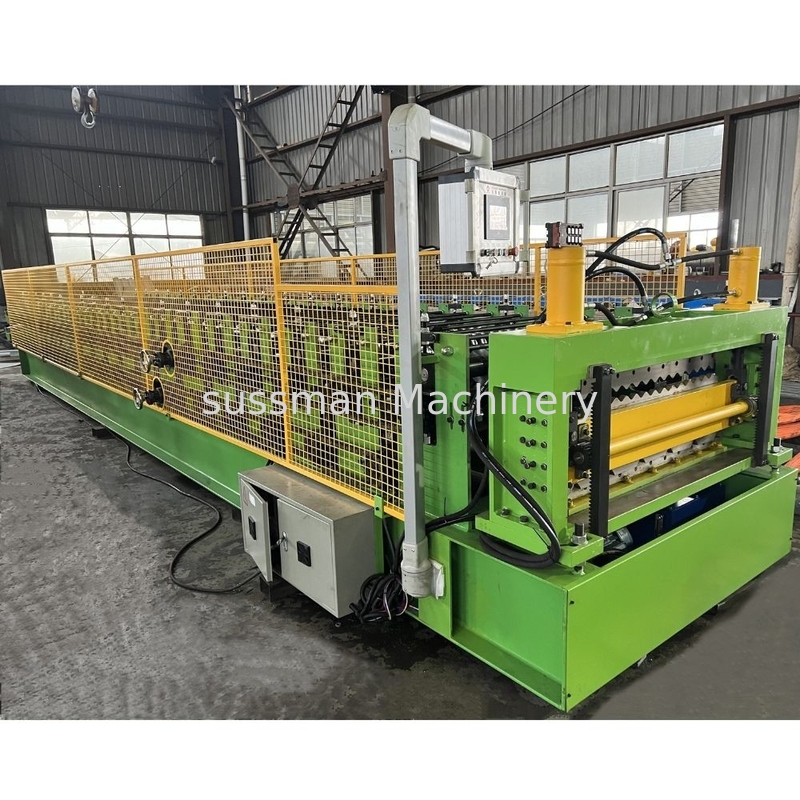

Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia
  • Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia
  • Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia
  • Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia
  • Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia
  • Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia
Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia

Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE ISO SGS
Model Number SM-RP
Product Details
Thickness:
0.17-0.4mm Color Sheet
Hydraulic Power:
5.5Kw
Roller Statione:
About 19/17 Stations
Main Motor Power:
7.5kw
Way Of Drive:
1.2 Inch Single Chain
Color Steel Sheet Width:
1220mm
High Light:

5.5Kw Roof Sheet Roll Forming Machine

,

Double Layer Roof Sheet Roll Former

,

Roof Sheet Roll Forming Machine 0.3mm

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
90 days after deposit
Payment Terms
T/T L/C
Supply Ability
10 sets per months
Product Description

0.12mm-0.3mm Thickness Double Layer Roll Forming Machine for Columbia​





This machine is made for a customer from Columbia





Technical Parameter:



Number
Items
UnitType
RF-DL
1
Steel Thickness
mm
0.17-0.45mm, coil width 1220 and 1000mm
2
Forming Speed
m/min
0-10m/min
3
Roller stands
stand
19 stands bottom layer; 17 stands top layer
4
Roller Material
mm
45# steel, coated with chrome quenching
5
Shaft material and diameter
mm
Ф76 45# steel, coated with chrome
6
Main Motor Power
Kw
7.5
7
Hydraulic cutting Power
Kw
4
8
Hydraulic pressure
Mpa
12
9
Power Supply

380V, 50HZ,3 phase(according to customer)
10
Tolerance
mm
1.5
11
Material of cutting

Cr12mov HRC60-62
12
Control system

PLC with touch screen


Working Flow:


 Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting
Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia 0

Profile Drawing

Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia 1

Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia 2





Machine Shows



Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia 3

Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia 4

Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia 5

Loading Pictures



Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia 6
