Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-PU |

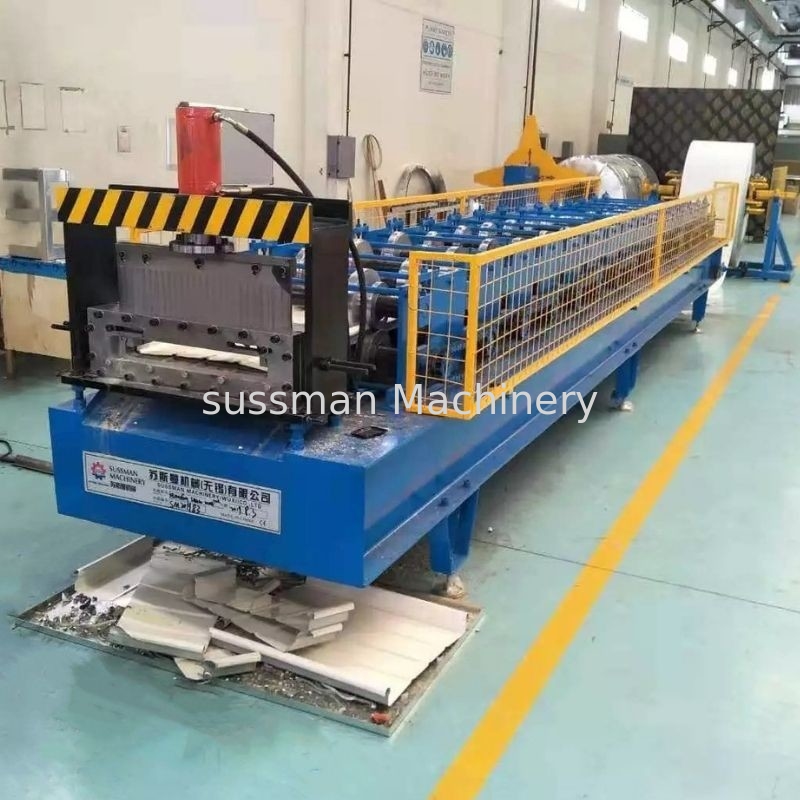

0.3mm-0.8mm Thickness Bemo Standing Roll Forming Machine; Seam Self Lock Boltless Roof Machine
Standing Beam Bottom Technical Parameter
1.Passive uncoiler 5 ton
2.Main motor power:7.5KW
3.Motor power of hydraulic station:5.5KW
4.Forming station: about 20 stands
5.Main machine size:8.5 m×1.2m×1.25m
6.Forming speed: 10m/min
7.Diameter of roller shaft:¢76mm
8.Raw material width:355.6 mm
9.Roller surface coating with chrome:single face≥0.05mm
10.Forming thickness:0.3-0.8mm
11.profile according to GB/T12755-91 standards
12.material of cutting blade: Cr12
13.frequency: Delta
14. Computer (PLC)
15.computer operation board: OP320A
Standing Beam Main Components
| S.N | Equipment name | Quantity |
| 1. | 10T hydraulic un-coiler | 1 set |
| 2. | Feeding and leveling device | 1 set |
| 3. |
Main roll forming machine 18 stations |
1 set |
| 4. | Hydraulic cutting | 1 set |
| 5. | Control system (including control box) | 1 set |
| 6. | Out tables | 2 sets |
| 7. | Hydraulic station | 1 set |
Profile Drawing
Working Flow of Standing Beam
Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables
Profiles of Standing Beam
Customes Visiting
Loading Pic.
Advantage for Standing Beam
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
