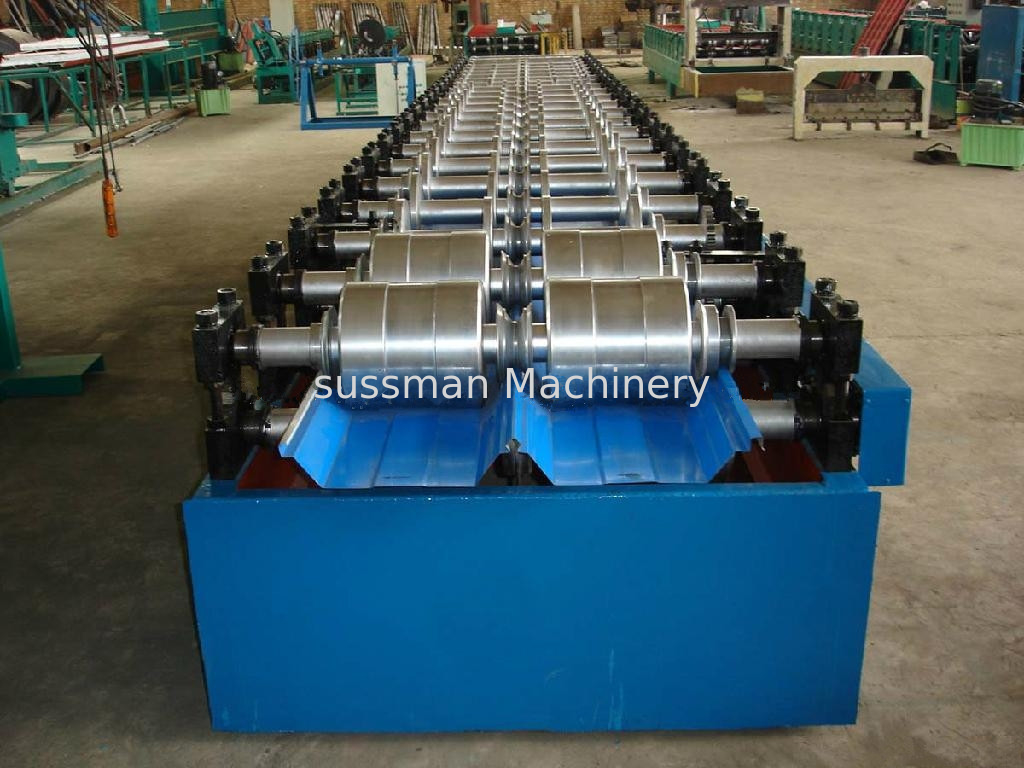

Galvanized Steel Coating Panel roll forming machine
Technological process
Uncoiling—Feedingwithguide——PreCutting——Rollforming—Cutting—Products collecting
Coating=Galvanized Iron/Zinc-Aluminium
Thickness=0.20-0.7mm
Sheet width=1000mm (Input)
Sheet width=840mm (Output)
Yield Strength=550Mpa
hydraulic de-coiler
Coil inner Diameter: ￠460-520mm
Max out diameter of the coil:￠1500mm
Max Coil Width: 1000mm
Control box: cantilever
Electrical control system part
(1) Power supply :380V, 50hz, 3Phase(can be adjusted according to requirements)
(2) automatic measurement of length and quantity;
(3) Length and quantity are controlled by Siemens PLC
(4) The length error correction is convenient.
(6) Control panel: push-button switch and touch screen
(7) Length unit: mm (open the control panel)
some photos about productions:
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can
through negotiation for to solve the problems,and we supply the technical support for the whole life of the
equipment.
