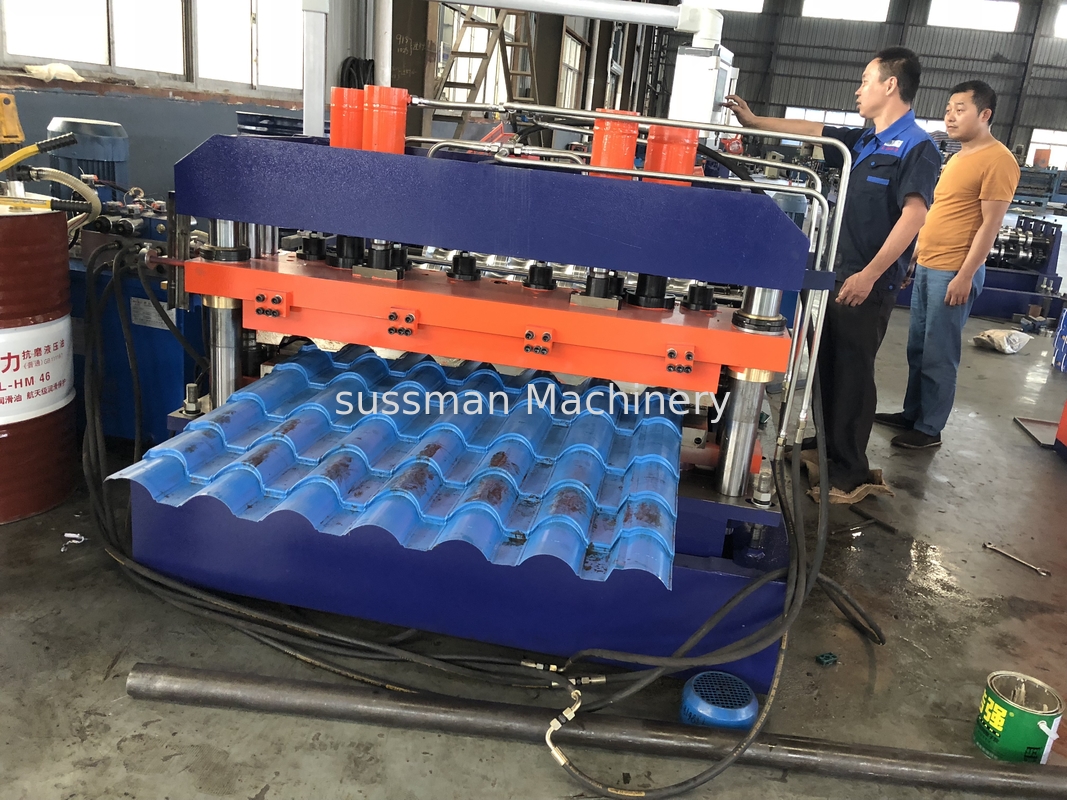

Automatic PLC Control 0.4-0.7mm Thickness Glazed Tile Metal Roofing Roll Forming Machine
The finished products are widely used in garden-like factories, tourist scenic spots, pavilions and pavilions, hotel villas, exhibition halls, resorts, resorts and so on. It has many advantages, such as beautiful scenery, Home and other architectural and outdoor decoration.
Product Description
Color Steel Sheet Thickness: 0.4~0.7mm Color Sheet
Color Steel Sheet width: 1000mm
Roller Stations: 16 stations
Way Of Drive:1.2 inch single chain
Roller Material: 45# forge steel, coated with chrome
Shaft Material and DIA:￠76mm, material is 45# forge steel
Main Motor Power: 7.5kw
Press parts:
Type:Hydraulic
Hydraulic Station Power: 5.5kw
Size of the press parts: 2000*1800*1500mm
Profile Drawing
Maintance and the service of the machine
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
