Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-PU |
Calibre 22 to Calibre 26 Color Coated KR18 Standing Seam Roll Forming Machine
Standing Beam Bottom Technical Parameter
Ribbed sheet with SSR (Standing Seaming Roofing) snap-on system kr18, used in the industrial, commercial or residential construction, has a concealed fixing system, that is that it is not necessary to perforate the sheet, thus reducing possible leaks making it waterproof.
| Item NO |
Description |
UnitType | RF-RP |
| 1 | Material Thickness | mm | 0.7-1.2mm for Color coated steel 0.5-0.8mm for aluminum sheet |
| 2 | Forming Speed | m/min | 0-12 |
| 3 | Roller stands | stands | 20 with the bottom ribs |
| 4 | Roller Material | 45# steel, coated with chrome, fire treated, HRC 58-62 | |
| 5 | Shaft diameter and materail | Ф70, 45# steel, fire treated, HRC 58-62 | |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply | According to client’s requiry | |
| 9 | Tolerance | mm | 1.5 |
| 10 | Material of cutting | Cr12 | |
| 11 | Control system | PLC with touch screen | |
| 12 | Main machine weight | T | 6-7 Ton |
| 13 | Outer specification | m | 7*1.2*1.2 |
| 14 | Transmission Type | 1 inch chain drive | |
| 15 | Voltage | 220V, 60hz, 3 phases |
Machine List:

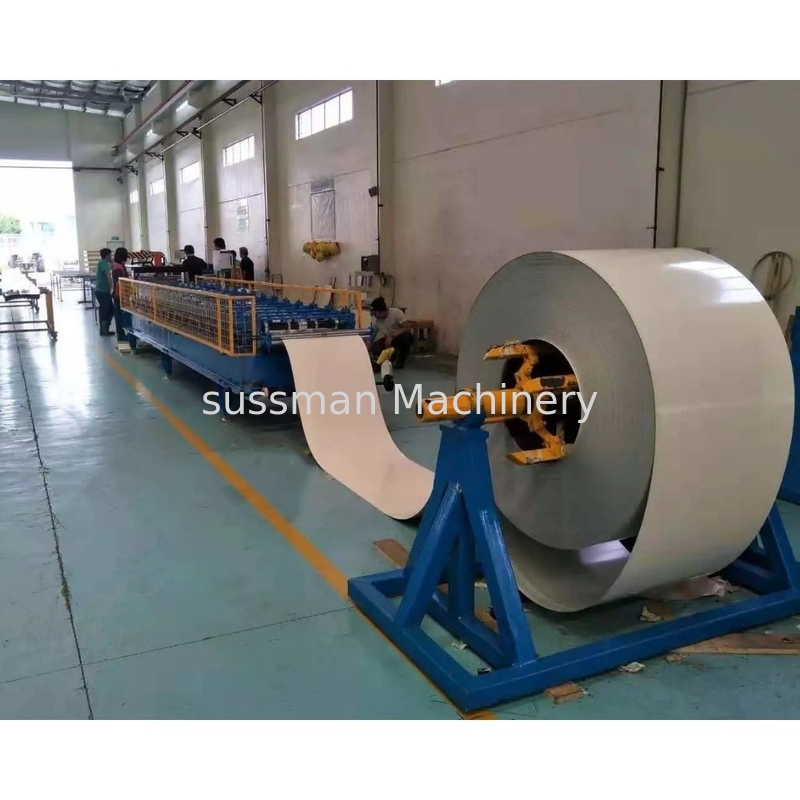

| 5 ton passive de-coiler | 1 set |
| Main roll forming machine with wheels | 1 set |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| Out table | 1 unit |
Loading Pic.
Application:
