Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
Color Pre-Painted Steel 0.032" Aluminum Concealed-Fastened 12" 16" Standing Seam Roof Roll Forming Machine
1. Technical Parameter
|
Number |
Items |
UnitType |
RF-ST |
|
1 |
Steel Thickness |
mm |
0.7-1.2mm for Color coated steel |
|
2 |
Forming Speed |
m/min |
8-12 |
|
3 |
Roller stands |
stations |
20 stations |
|
4 |
Roller Material |
mm |
45# steel, coated with chrome |
|
5 |
Shaft material and diameter |
mm |
Ф70mm, 45# steel, fire treated |
|
6 |
Main Motor Power |
Kw |
7.5 servo motor |
|
7 |
Hydraulic cutting Power |
Kw |
4KW |
|
8 |
Hydraulic pressure |
Mpa |
12 |
|
9 |
Power Supply |
|
380V, 50HZ,3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12Mov HRC60-62 |
| 12 | Machine weight | T | about 7 tons |
2. Machine List
|
5 tons manual de-coiler |
1 set |
|
Hydraulic pre-punching and cutting |
1 set |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
4 meters Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. Profile Drawing
We have different model standing seam profile design
4. Application
This machine is used to form the pre-painted sheet/GI material to be the standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
5. Packaging & Shipping
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container.

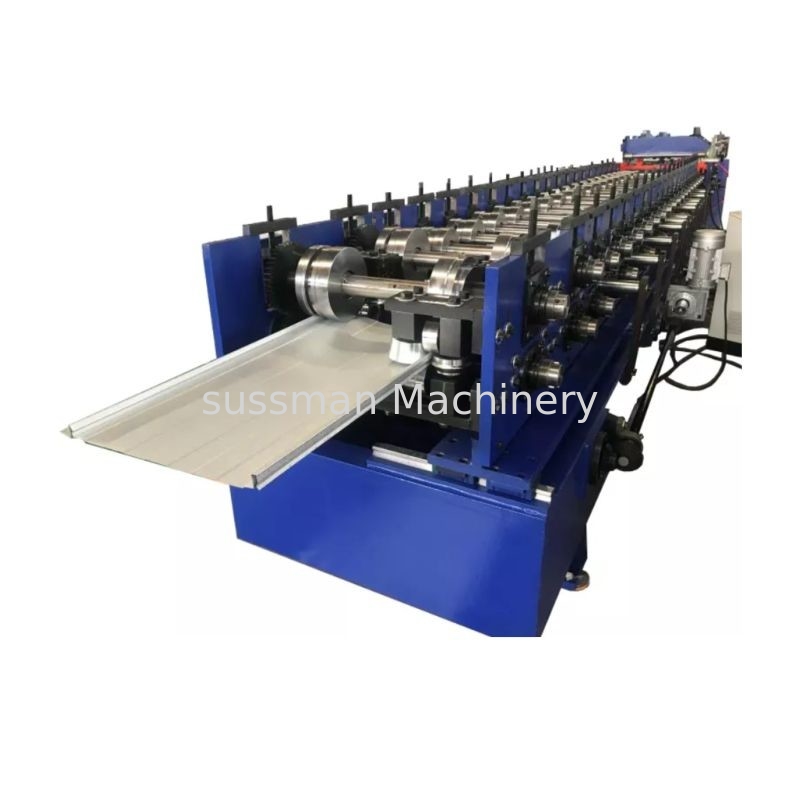

6. Machine photo
