Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
Aluminum Steel Roof Boltless Metal Sheet Fascia Panel Roll Forming Machine Self Lock Standing Seam Roll Forming Machine
1. Technical Parameter
|
Items |
UnitType |
RF-ST |
|
Steel Thickness |
mm |
0.4-0.8mm for aluminum sheet,Color coated steel |
|
Forming Speed |
m/min |
8-12 |
|
Roller stands |
stations |
20 stations |
|
Roller Material |
mm |
45# steel, coated with chrome |
|
Shaft material and diameter |
mm |
Ф70mm, 45# steel, fire treated |
|
Main Motor Power |
Kw |
7.5 servo motor |
|
Hydraulic cutting Power |
Kw |
4KW |
|
Hydraulic pressure |
Mpa |
12 |
|
Power Supply |
|
380V, 50HZ,3 phase |
|
Tolerance |
mm |
1.5 |
|
Material of cutting |
|
Cr12Mov HRC60-62 |
| Machine weight | T | about 7 tons |
2. Machine List
|
5 tons manual de-coiler |
1 set |
|
Feeding with guide |
1 set |
|
Main roll forming machine |
1 set |
| Hydraulic cutting | 1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
4 meters Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. Profile Drawing
This boltless system will also makes the installation result visually clean and show the whole profile in one piece.
There are types of boltless forming profiles i.e. hooktightening, seaming, and pushlock installation system.
4. Application
This machine is used to form the pre-painted sheet/GI material to be the standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

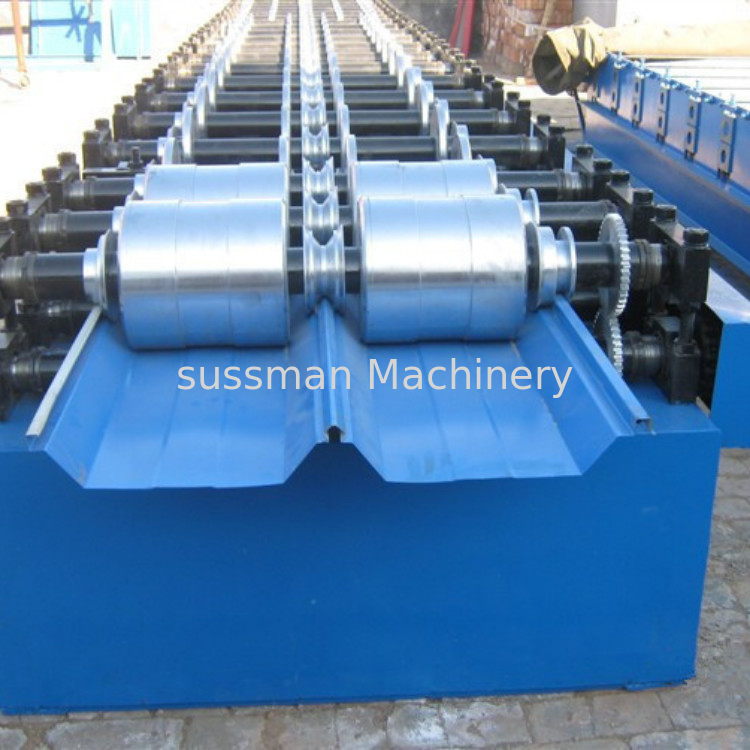

5. Machine photo
