Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
PPGI Color Steel Zinc Aluminum TR5 Roofing Sheet Making Machine Steel Material Thickness 0.35mm
1. Zinc roofing machine technical parameter
|
Coil Material |
Material thickness |
0.3-0.8mm PPGI Color steel |
|
Material width |
1220mm |
|
|
ROLL MACHINE |
Frame Structure |
350H-beam |
|
Roller Station |
About 20 roller stations |
|
|
Roller Shaft |
76mm 45# Steel Solid,Precision |
|
|
Shaft Material |
45# Steel Solid,Precision |
|
|
Roller Info. |
45# steel harden chromed plated |
|
|
Transmission |
Chain 1 inch |
|
|
Motor Power |
7.5KW |
|
|
Output Speed |
About 10-15m/min |
|
|
CUTTING |
Frame Structure |
350mm Carbon Steel |
|
Cutting Type |
Hydraulic Automatic |
|
|
Cut Performance |
No scrap,no deformation |
|
|
Cutting Blade |
Cr12Mov,hardness 60-62℃ |
|
|
HYDRAULIC SYSTEM |
Installation |
inside,easy for operation |
|
Pump Motor |
4KW |
|
|
COMPUTER |
Electrical Control |
DELTA PLC DELAT Inverter |
|
Length Control |
Rotaty Encoder from Omron |
|
|
Length Tolerance |
±1.5mm |
|
|
Touch Screen |
DELTA(TAIWAN) |
2. Roofing Machine List
|
5 T passive de-coiler |
1 set |
|
Guiding Platform |
1 set |
|
Manual pre-cutting device |
1 set |
|
Main roll forming machine |
1 set |
|
Hydraulic cutting machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. Profile Drawing of roofing machine
We can design and produce the machine as your request,welcome to send us your sepecification or drawing profile.
4. Roofing Main Features
1.This roofing roll forming machineis unit one, which means motor and hydraulic station made of main machine, it saves more space.
2.More reasonable forming process design; More roller steps with competitive price.
3.The whole line consists of un-coiler, double pre-cutting system, feeding system, roll forming machine with protect guarding cover, post-cut device, PLC control system, and so on.
5. Applications
Roofing tile sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.

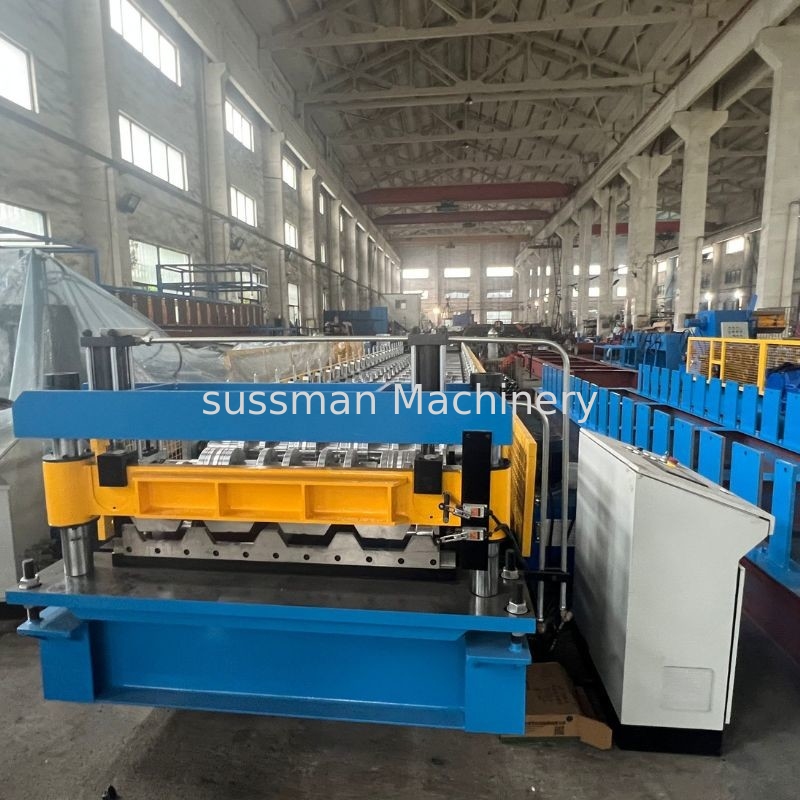

5. Roofing Machine Photo
