Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-RP |

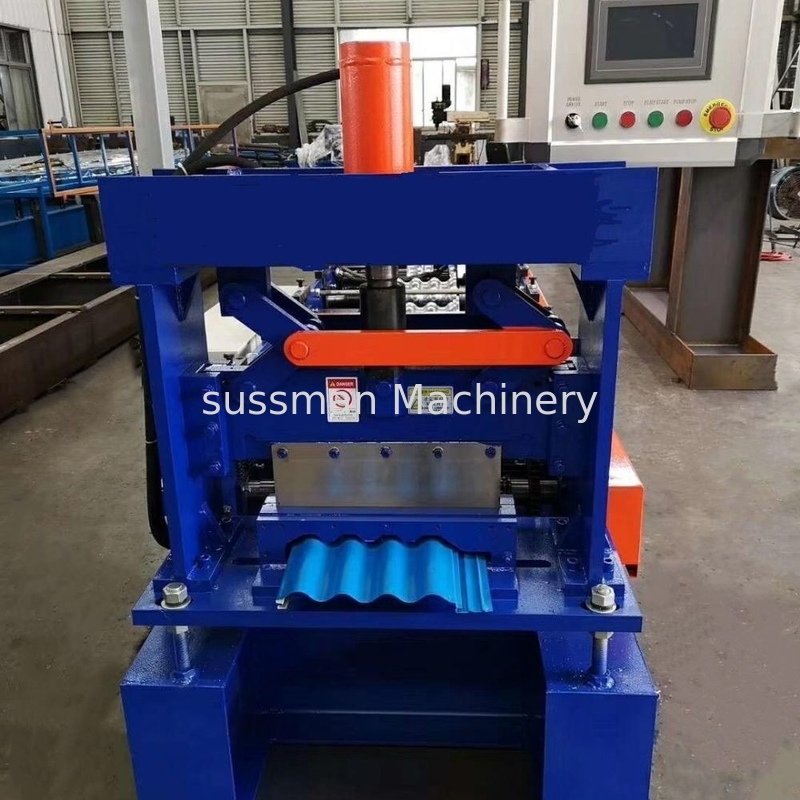

422mm Width Corrugated Self Lock Concealed Fastener Wall and Liner Panel Roll Forming Machine
Corrugated Self Lock panel is an advancement of the original concealed fix roof cladding with bolder ribs and subtle transverse fluting on the pans provides wider coverage and visual appeal. Concealed fastening offers excellent water tightness and control of thermal expansion.
The Panel Profiles shown are used mainly in Architectural applications in which exposed fastener heads are not desired. Most of these Panels are used in the following applications: Exterior Wall, Interior Partition, Soffit or other inside usages. Some may also offer an option of a manufactured installed bead of mastic applied to provide a weather tight seal. Please consult our sales office for the proper panel profile to be used on your application.
Technical parameter:
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 12-15m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3mm-0.8m |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 7.5KW |
| 1.6 | Dimension | About 8000×1600×1200(mm) |
| 1.7 | Effective width | 1000mm |
| 1.8 | Feeding Coil width | 1219mm |
| 1.9 | Roller stations |
About 18 stations
|
| 1.10 | Roller material | 45#forge steel, coated with chrome |
| 1.11 | Shaft diameter | Φ76mm |
| 1.12 | Transmission | By chain 1.2 inch |
| 1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 10m+-1.5mm |
| 1.16 | Hydraulic station | 4kw |
Machine List:
working flow
Profile Drawing
Machine Shows
Application
