| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
0.3-0.8mm Aluminum Galvalume Kr18 Standing Seam Roof Forming Machine Portable Standing Seam Making Machine
The KR-18 sheet is a sheet rolled and jointed on site. A portable machine is used in addition to a 2' Tape.
It has no length limitations as it is manufactured in a single piece from gutter to ridge, is very popular in L.A.B Monterrey, Nuevo León, Mexico, Federal District, Guadalajara.
1. Technical Parameter
|
Number |
Items |
UnitType |
RF-ST |
|
1 |
Steel Thickness |
mm |
0.7-1.2mm for Color coated steel |
|
2 |
Forming Speed |
m/min |
8-12 |
|
3 |
Roller stands |
stations |
7 stations |
|
4 |
Roller Material |
mm |
45# steel, coated with chrome |
|
5 |
Shaft material and diameter |
mm |
Ф70mm, 45# steel, fire treated |
|
6 |
Main Motor Power |
Kw |
5.5 servo motor |
|
7 |
Hydraulic cutting Power |
Kw |
4KW |
|
8 |
Hydraulic pressure |
Mpa |
12 |
|
9 |
Power Supply |
|
220V, 60HZ,3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12Mov HRC60-62 |
| 12 | Machine weight | T | about 2 tons |
2. Machine List
|
5 tons manual de-coiler |
1 set |
|
Hydraulic cutting |
1 set |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
4 meters Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. KR18 Profile Drawing
SSM KR-18 profile design
Available in calibers 22 to 26
Recommended in 24 Gauge for Hooked Ceilings.
4. KR-18 application
5. Packaging & Shipping
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container.

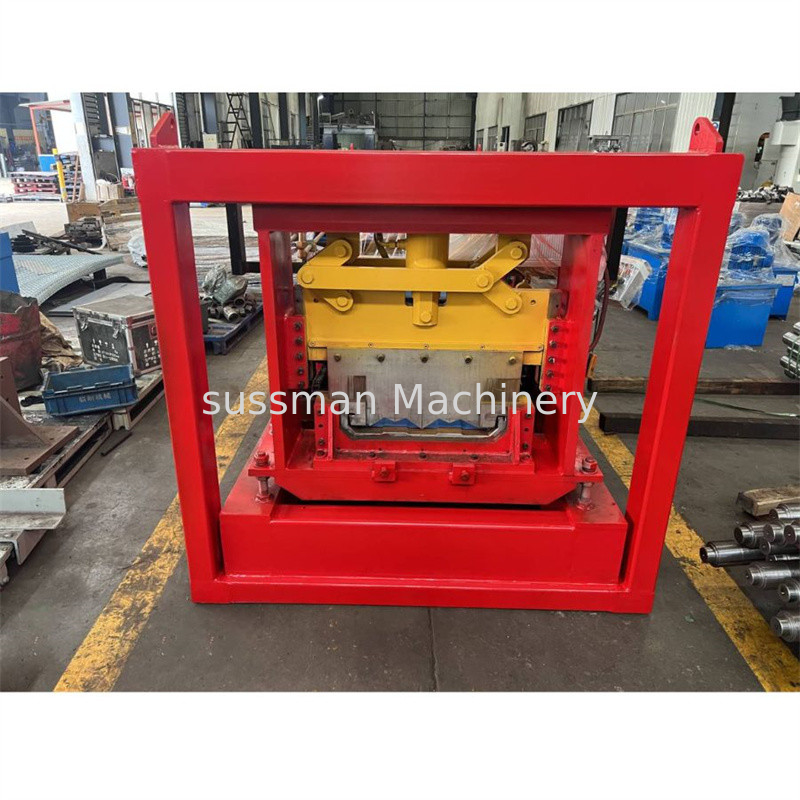

6. Machine photo
