Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-GT |

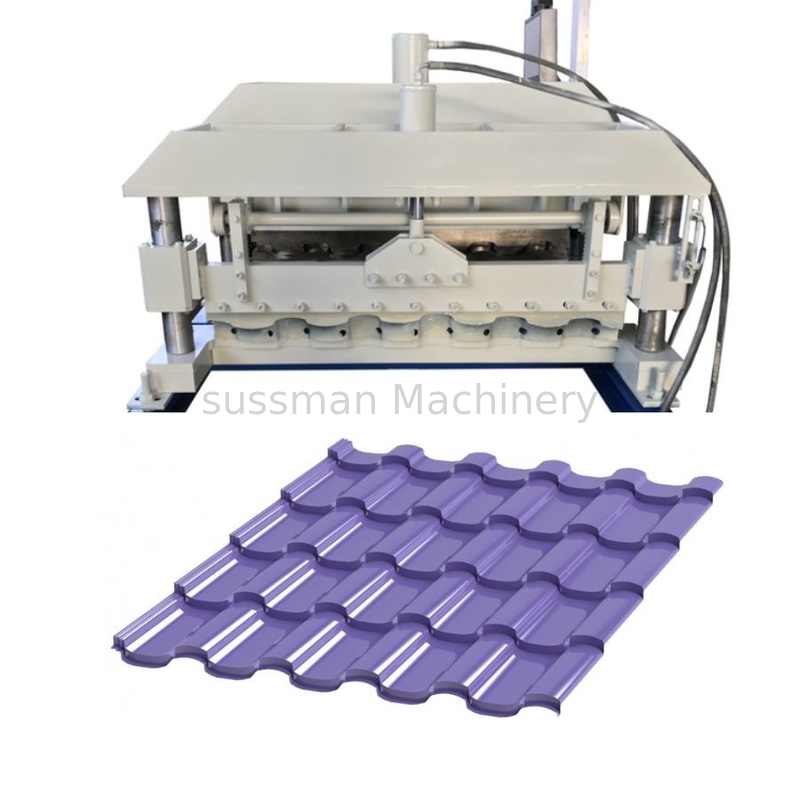

Customized 0.50 Mm Thickness TS55-350-1125 Adamante Metal Roof Roll Forming Machine
Glazed Tile Technical Parameter
|
Shearing Thickness |
Up to Max. 0.8mm |
|
Thickness |
0.3mm-0.8mm |
|
Feeding Width |
1220mm or 1153mm |
|
Frame Design |
Wall-plate-frame-design /New-stand-frame-design |
|
Roll Stages |
16 stages |
|
Material Of Forming Roller |
45# steel, CNC lathes, Hard Chrome Coated |
|
Shafts Diameter |
Φ75mm |
|
Main Motor Power |
7.5KW |
|
Max. Line Speed of Roll Former |
Approx. 4m/min (stair length 350mm, production length 6m) |
|
Hydraulic Group Power |
7.5KW |
|
Material of Cutting Blade |
Cr12, hear treatment |
|
Electric Standard |
380V /50Hz/3PH or as per customer's requirements |
|
Machine Dimensions |
8000mm×1800mm×1500mm |
|
Major Color of Machine Painted |
RAL 5015 (Blue) or as per customer's requirements |
Glazed Tile Main Components
| S.N |
Equipment name |
Quantity |
| 1. |
5 Tons passive un-coiler |
1 set |
| 2. |
Main roll forming machine |
1 set |
| 3. |
Hydraulic press and cutting |
1 set |
| 4. |
Control system (including control box) |
1 set |
| 5. |
Out tables |
2 sets |
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Press & Cutting---Run out tables
Profiles of Glazed Tile
|
Product code
GT55-350-1125
Profile Height
55 mm
Step length
350 mm
Effective width
1125 mm
Total width
1153 mm
Maximum length
8200 mm
Minimum length
850 mm
Material thickness / weight per m2
0.50 mm / 4.8 kg
Other technical information
Please contact us
|
Application
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
