Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-RP |

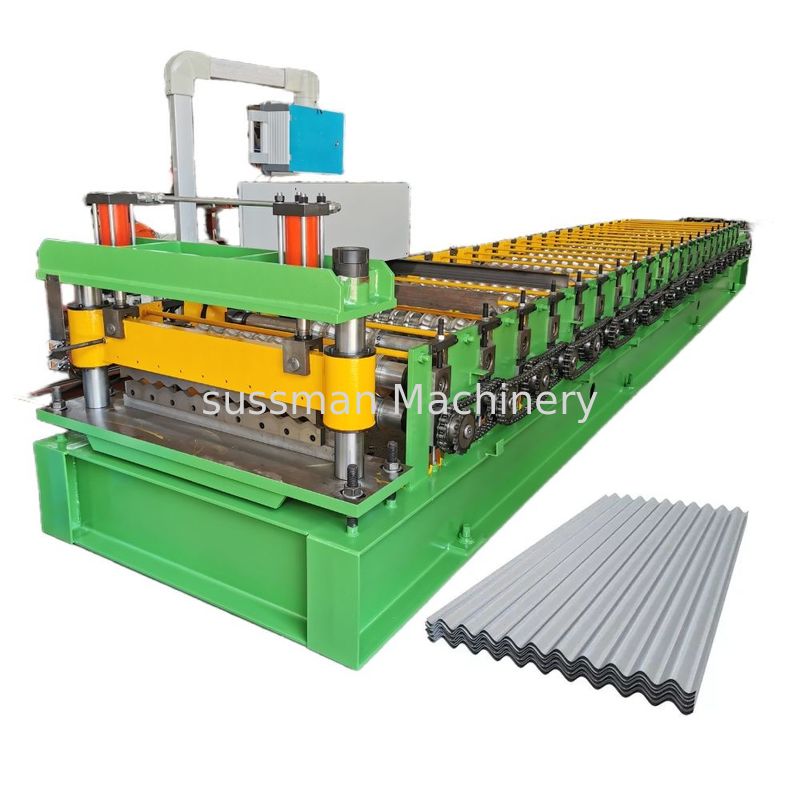

0.12-0.3mm Thickness Zincalum PPGI GI ONDULADO 14 18 Corrugated Metal Roofing Panel Roll Forming Machine
The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
Nu-Wave Corrugated is an economical, structural through-fastened roof or wall panel suitable for general usage., hot sale in Amercia.
Technical parameter:
| Number | Items | UnitType | RF-DL |
| 1 | Steel Thickness | mm | 0.12-0.3mm 0.3-0.8mm PPGI and GI |
| 2 | Forming line Speed | m/min | 10-12 |
| 3 | Roller stands | stand | About 20-22stands |
| 4 | Roller Material | mm | #Gcr15, coated with hard chrome quenching |
| Shaft material and diameter | mm | Ф76 45# steel, coated with chrome | |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply | 415V, 50HZ,3 phase | |
| 9 | Tolerance | mm | +/-1.5 |
| 10 | Material of cutting | Cr12mov HRC60-62 | |
| 11 | Control system | PLC with touch screen | |
| 12 | Machine net weight | T | 8 |
| 13 | Out size | mm | 10000*1300*1000 |
Machine List
| Machine list | 5 tons hydraulic de-coiler | 1 set |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Safety cover | 1 set | |
| Spare parts | 1 set |
working flow
Profile Drawing
This drawing shows the drawing of ONDULADO-48, is not only popular in Chile, also in Africa, South Africa, the Philippines, Indonesia, Thailand and etc.
The length after corrugation is 1000mm, the height wave is 14mm or 18mm, we can customized the wave size and total length according to your demand.
Machine Shows
Application:
