Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-GT |

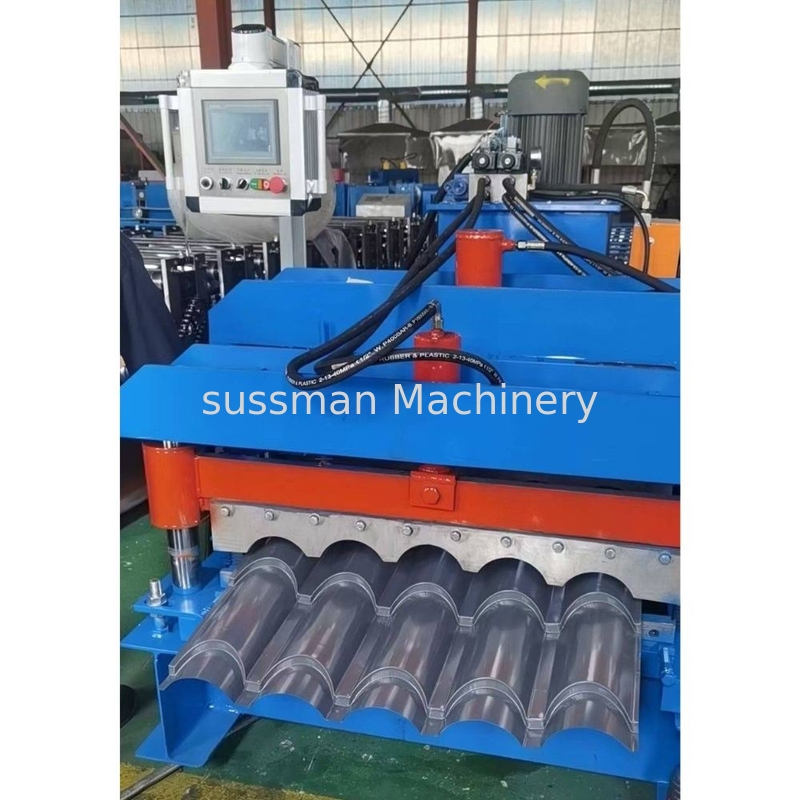

0.3-0.8mm Thickness Glazed Tile Roof Tile Roll Forming Machine with 17 Stations
Glazed Tile Technical Parameter
| (1) 5Tons manual un-coiler | |
| Description | There are different choices, please turn to the catalogue of un-coiler |
| (2) Entry bench & Manual Pre-shearing device | |
| Function | Smart cut control, to cut off the end of the final piece of sheet only |
| Shearing Thickness | 0.3-0.8mm |
| (3) The general machine parameter | |
| Suitable roll forming material | Color steel sheet or galvanized steel |
| Feeding width | 1220mm |
| Frame design | Wall-plate-frame-design /New-stand-frame-design |
| Roll stages | 18 stages |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75 mm |
| Main motor power | 7.5KW with reducer |
| Max. Line speed of roll former | 3-4m/min |
| Hydraulic Stair-Drawing & Cutting Device | There is one hydraulic press to make the stair according to requirement and hydraulic post cut for cut off |
| Hydraulic group power | 7.5KW |
| Material of cutting blade | Cr12, heat treatment |
| Electric Standard | 380V /50Hz/3PH or as the customer's requirements |
| Machine Dimensions | 9500mm×1800mm×160mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer's requirements |
| (4) PLC Control system | |
| PLC | Delta / Siemens brand |
| Touch Screen | Delta / Siemens brand |
| Inverter | Delta |
| Encoder | Omron brand |
| (5) Product rack | |
| Description | un-powered, 2 units, 2 meters |
Glazed Tile Main Components
| S.N |
Equipment name |
Quantity |
| 1. |
5T passive un-coiler
|
1 set |
| 2. |
Main roll forming machine |
1 set |
| 3. |
Hydraulic cutting |
1 set |
| 4. |
Control system (including control box) |
1 set |
| 5. |
Out tables |
2 sets |
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profiles of Glazed Tile
Application
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
