Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
24 Gauge Aluminum Galvalume Snap Lock Standing Seam Roof Roll Forming Machine
Snap Lock standing seam panel is one of the most versatile metal roofing panels made, which using commercial metal building or on a residential metal roofing application, its structural performance is unsurpassed.
1. Technical Parameter
|
Number |
Items |
UnitType |
RF-ST |
|
1 |
Steel Thickness |
mm |
0.7-1.2mm for Color coated steel |
|
2 |
Forming Speed |
m/min |
8-12 |
|
3 |
Roller stands |
stations |
16 stations |
|
4 |
Roller Material |
mm |
45# steel, coated with chrome |
|
5 |
Shaft material and diameter |
mm |
Ф70mm, 45# steel, fire treated |
|
6 |
Main Motor Power |
Kw |
7.5KW motor |
|
7 |
Hydraulic cutting Power |
Kw |
4KW |
|
8 |
Hydraulic pressure |
Mpa |
12 |
|
9 |
Power Supply |
|
220V, 60HZ,3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12Mov HRC60-62 |
| 12 | Machine weight | T | about 6 tons |
2. Machine List
|
5 tons manual de-coiler |
1 set |
|
Hydraulic cutting |
1 set |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
4 meters Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. Snap lock standing seam Profile Drawing
Snap-lock profiles consist of panels that have been carefully rollformed with specifically shaped edges, a male and female leg, that snap together and do not require hand or mechanical seaming during installation. Snap-lock profiles are attached to the roof deck using a clip that attaches to the seam and fastens underneath the panel.
5. Packaging & Shipping
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container.

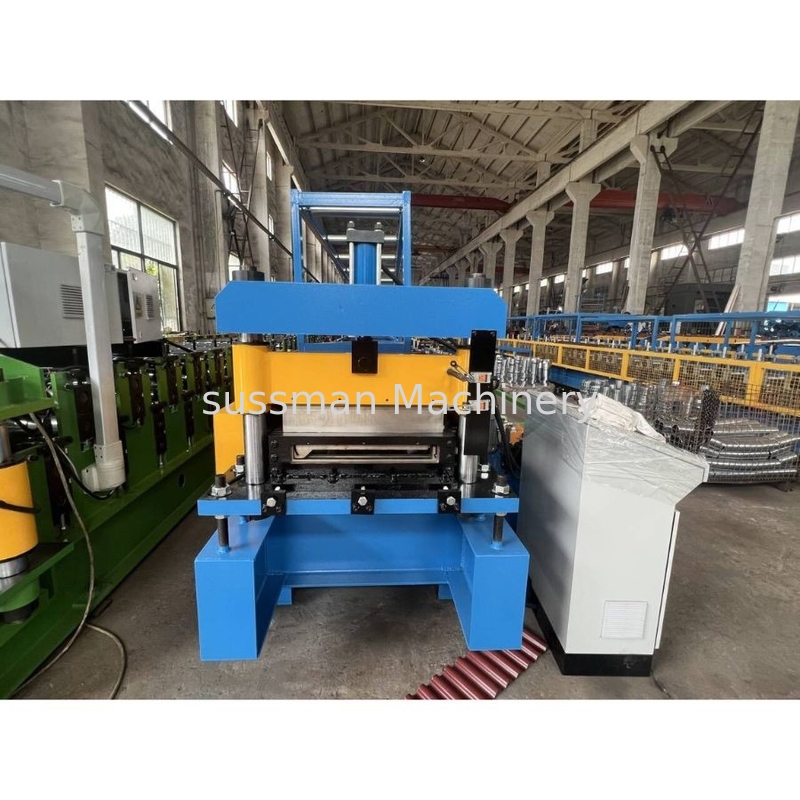

6. Machine photo
