Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-BS |

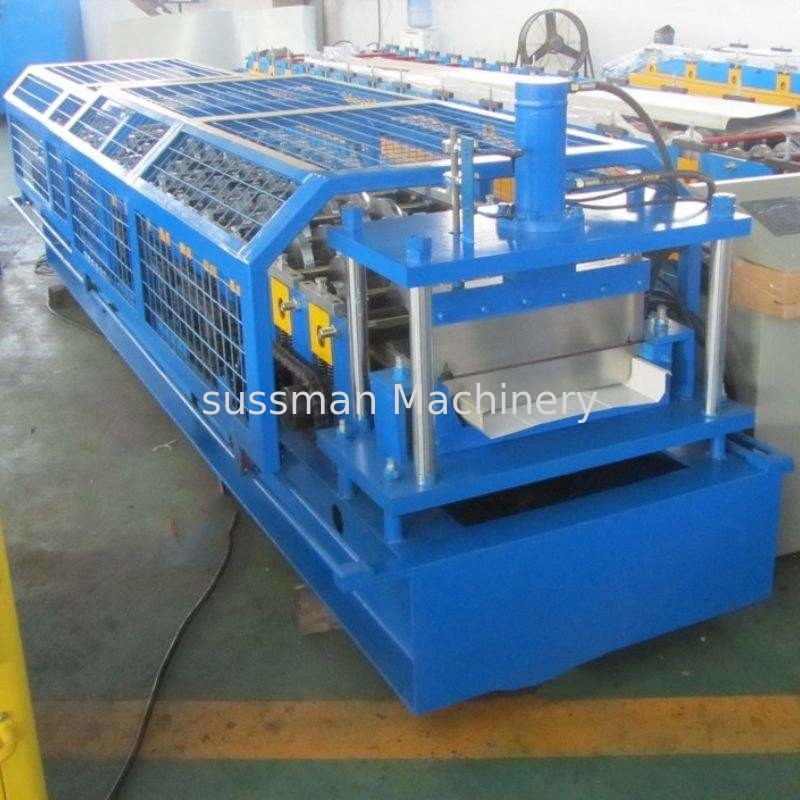

0.7-1.2mm Thickness Metal Roof Sheet Making Machine Beam Standing Roll Forming Machine
Flush-Panel Soffit – FP10 is a commercial grade soffit panel system that provides a flush, aesthetic appearance upon installation.
The product is an integral interlocking system by design which installs in one direction from a given starting point.
Standing Beam Bottom Technical Parameter
1. Steel Sheet Thickness: 0.7-1.2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching, circular pitch: 38.1, number of teeth:13
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 5 ton passive decoiler
6. Forming Speed: 0-12m/min
7. Roller Groups: 16 stations
8. Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9. Material: galvanized steel, color coated steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw
Standing Beam Main Components
| S.N | Equipment name | Quantity |
| 1. | 5T passive un-coiler | 1 set |
| 2. | Feeding and leveling device | 1 set |
| 3. |
Main roll forming machine 18 stations
|
1 set |
| 4. | Hydraulic cutting | 1 set |
| 5. | Control system (including control box) | 1 set |
| 6. | Out tables | 2 sets |
| 7. | Hydraulic station | 1 set |
| 8. | Seamer device | 1 set |
Advantage for Standing Beam
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Working Flow of Standing Beam
Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables
Profiles of Standing Beam
Company Introduction
Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
