0.3-0.8mm Thickness 5V Metal Roof Sheet Roll Forming Machine with Electrical Cutting
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, PV-4, PV-5, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine. Its products are widely used in roof and wall system in workshop construction and housing construction.
Technical parameter:
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | about 12-15m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3mm-0.8m |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 7.5KW |
| 1.6 | Dimension | About 8000×1600×1200(mm) |
| 1.9 | Roller stations |
About 16-118 stations |
| 1.10 | Roller material | 45#forge steel, coated with chrome |
| 1.11 | Shaft diameter | Φ76mm |
| 1.12 | Transmission | By chain 1.2 inch |
| 1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 10m+-1.5mm |
| 1.16 | Hydraulic station | 4kw |
Machine List:
working flow
Profile Drawing

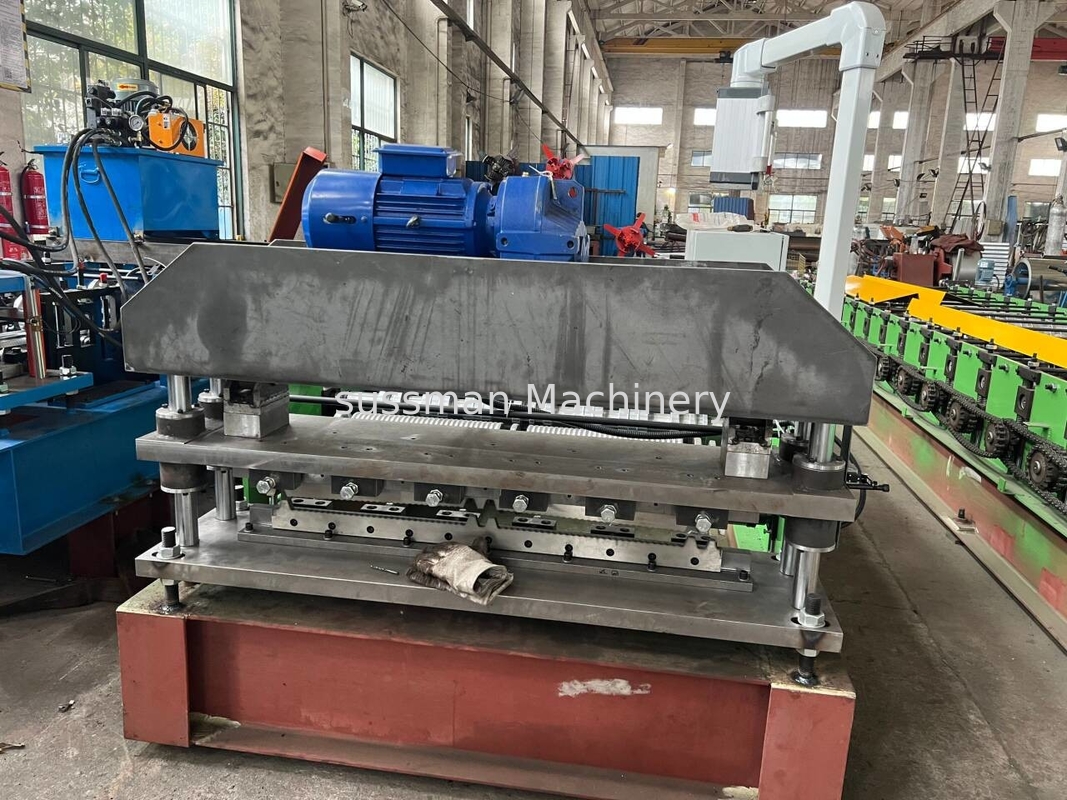

Machine Shows
Application
