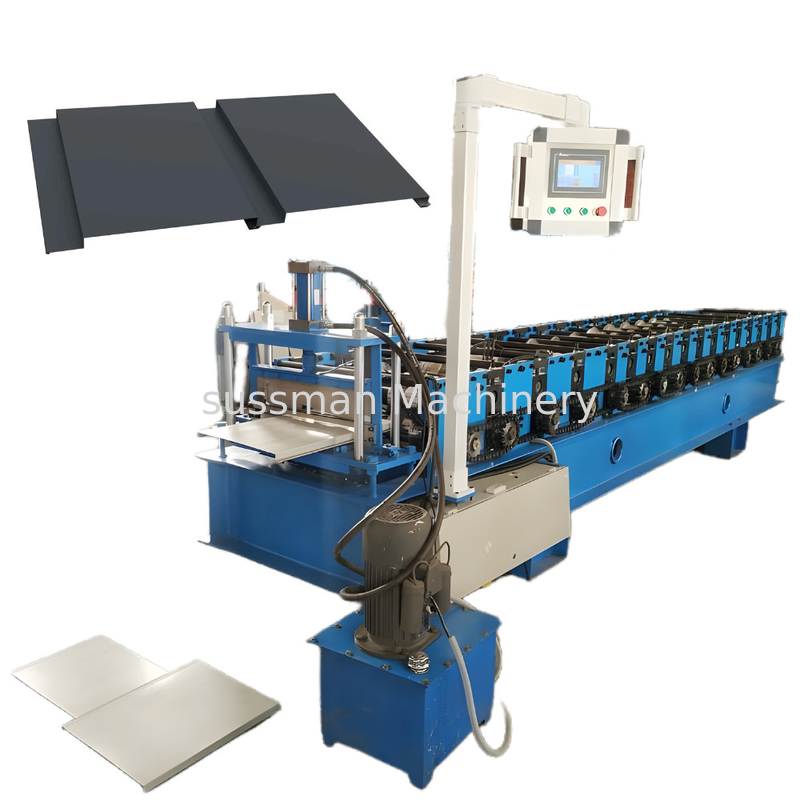

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable

Place of Origin	Wuxi, China
Brand Name	Sussman
Certification	CE, SGS, ISO
Model Number	RF-PU

Product Details

Type:

Reveal Wall Cladding Panels Roll Forming Machine

Forming Thickness:

0.3-0.8mm

Working Speed:

0-10 Meters/Minute

Motor Power:

7.5KW

Highlight:

PBR roof panel roll forming machine

22 stations roof sheet making machine

single chain drive roof panel machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

negotiable

Packaging Details

Film nad steel

Delivery Time

50 days after deposit

Payment Terms

Supply Ability

10 sets/month

Product Description

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable

Are you looking to make your metal fascia, soffit, or wall panels the focal point of your building? Sussman Machinery has bold and clean directional sight lines that will look stunning on your house. It's stronger and easier to install than using flat sheets. When using flats sheets on a job it is a design build application.
Sussman Machinery will give your building a bold and distinct design. It's a versatile metal fascia and wall panel system that's designed so that you can choose the gap between each sheet. It's available in no reveal, 1, 2, or 3 inch reveals. You can even mix and match the different sizes.

Item NO	Description	UnitType	RF-RP
1	Material Thickness	mm	0.3-0.8mm for Color coated steel
2	Forming Speed	m/min	0-10
3	Roller stands	stands	20
4	Roller Material		45# steel, coated with chrome, fire treated, HRC 58-62
5	Shaft diameter and materail		Ф70, 45# steel, fire treated, HRC 58-62
6	Cutting device		Hydraulic cutting
7	Main Motor Power	Kw	7.5
8	Hydraulic cutting Power	Kw	4
9	Hydraulic pressure	Mpa	12
10	Power Supply		According to client’s requiry
11	Tolerance	mm	1.5
12	Material of cutting		Cr12
13	Control system		PLC with touch screen
14	Main machine weight	T	6-7 Ton
15	Outer specification	m	711.2
16	Transmission Type		1 inch chain drive

Standing Beam Main Components

5 ton passive de-coiler	1 set
Main roll forming machine	1 set
Hydraulic Cutting	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
4 meters passive table	1 unit
Spare part	1 package

Profile Drawing:

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable 0

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable 1

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable 2

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable 3

Sample pictures:

Advantage for Standing Beam

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Working Flow of Standing Beam

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable 9

Customes Visiting

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable 10

Loading Pic.

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable 12

Aluminum Galvanized Metal Fascia Reveal Wall Cladding Sheet Roll Forming Machine with Width Auto Adjustable 14
