12″ 16″ 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site
  • 12″ 16″ 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site
  • 12″ 16″ 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site
  • 12″ 16″ 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site
12″ 16″ 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site

12″ 16″ 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Steel Thickness:
26ga And 24ga Standard, 22ga Optional
Forming Speed:
8-12m/min
Roller Stations:
11 Stations
Shaft Diameter And Material:
Ф70, 45# Steel, Fire Treated, HRC 50-55
Seam Width:
12″, 16″, Or 18″
Name:
Vertical Seam Roll Forming Machine
Application:
Architectural / Structural Integral Standing Seam Panel
Length Cutting:
Any Length Is Available From 3’ Up To 45’.
Highlight:

12″ Panel Coverage Roll Forming Machine

,

18″ Panel Coverage Roll Forming Machine

,

16″ Panel Coverage Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

12″, 16″, And 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site



The KR-18 sheet is a sheet rolled and jointed on site,it is east to take and operate on site.





1. Technical Parameter

  • Material Thickness:0.4-0.8mm color coated steel
  • Forming Speed:8-12m/min
  • Roller stands:About 11 rollers
  • Roller Material: 45# steel, coated with chrome, fire treated
  • Shaft diameter and materail:Ф75, 45# steel
  • Cutting type: hydraulic cutting
  • Power device:Petrol engine
  • Material of cutting:Cr12 Mov steel
  • Main machine weight: About 2.5 Tons
  • Machine size: About 4.8*1.0*1.2m
  • Transmission Type: chain drive



2. Standing Seam Profile Drawing



  • Architectural / structural integral standing seam panel
  • 12″, 16″, and 18″ panel coverage, 1-3/4″ rib height
  • Gauges: 26ga and 24ga standard, 22ga optional
  • Snap together panel system, minimum roof slope: 3:12
  • Factory applied side lap sealant
  • Concealed clip designed for thermal movement
  • Accommodates up to 4″ blanket insulation
  • Applies over open framing or solid substrate



12″ 16″ 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site 0







4. Application


standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

12″ 16″ 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site 1





5. Packaging & Shipping



Before loading to the container, we will check the machine first

Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery


Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.

At last, we will take photos for customer when loading to container.

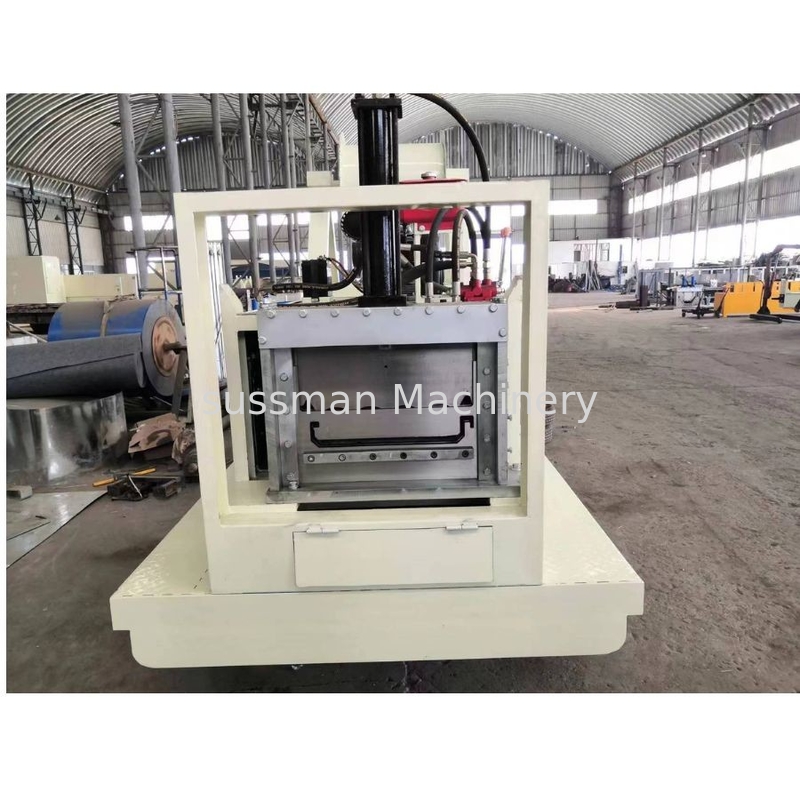

6. Machine photo



12″ 16″ 18″ Panel Coverage Vertical Standing Seam Metal Roofing Roll Forming Machine On Site 2
