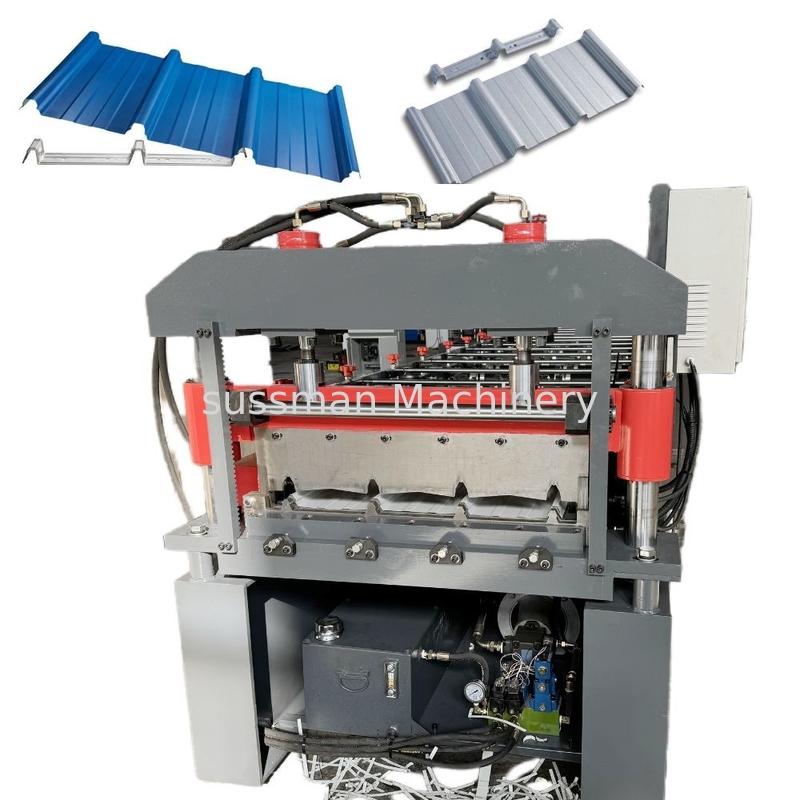

Clip Lock 700 730 Standing Seam Roll Forming Machine
Klip Lok roofing is a strong and durable long length roof (or wall) cladding. As the name suggests, Klip Lok is secured with concealed fasteners and fixed clips. This allows the sheets to be secured without being punctured. This cladding is ideal for low pitched and flat roofs as well as vertical and horizontal ribbed walling. As there are no exposed fasteners, your roof will have a smooth, clean look. Klip Lok roofs are ideal for anyone looking for an easy to install material that is cost-effective.
Technical Data:
Rolling Speed : 10-12m/min(cutting time is not include)
Steel sheet Thickness: 0.3-0.7mm color painted sheets
Coil width 914mm, effective width 720mm
Control System: PLC Delta
Roller Stations: about 20 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠70mm,material is 45# forge steel, Chrome with quenching
Main Motor Power: 7.5kw
Hydraulic Pressure: 12Mpa
Material Of The Stations: Wall plate thickness 16mm
Tolerance: +1.5mm
Power supplier: 380V, 50HZ,3 phases
Way Of Drive:1 inch single chain
Color Of The Machine :customer’s need)
The size of the forming machine:7000*1500*1000mm
Machine weight: about 7 tons
Machine List:
| 5 tons passive de-coiler |
1 set |
| Main roll forming machine |
1 set |
| Control box |
1 unit |
| Hydraulic stop cutting |
1 unit |
| Passive output tables |
2 units |
| Spare part |
1 package |
| Safety cover |
1 unit |
Profile Drawing:
Application:
