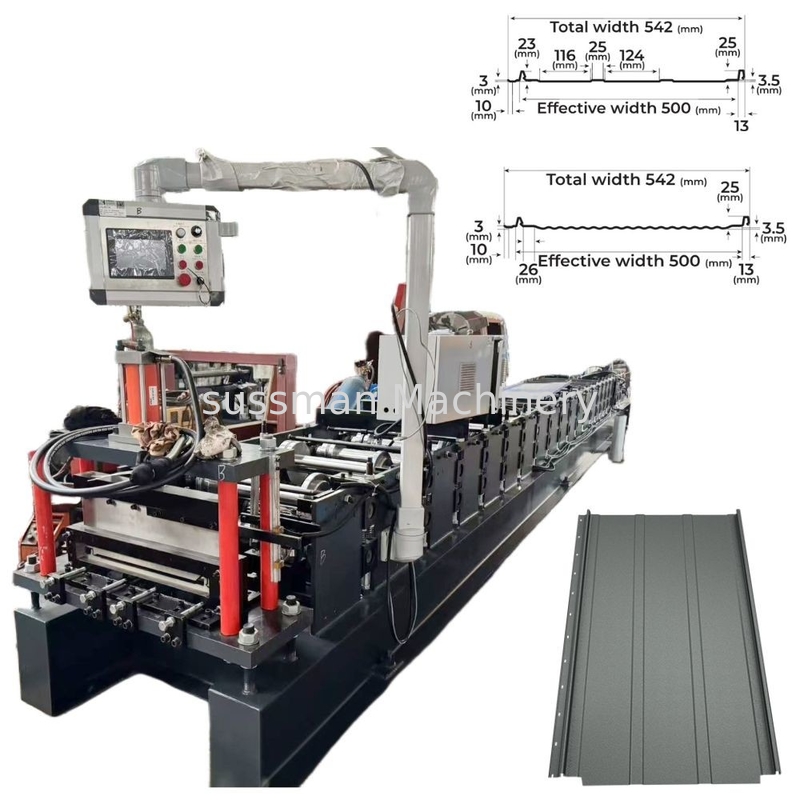

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine

Place of Origin	Wuxi, China
Brand Name	Sussman
Certification	CE, SGS, ISO
Model Number	RF-PU

Product Details

Type:

Smap Lock Standing Seam Roll Forming Machine

Forming Station:

About 20 Stands

Forming Speed:

10m/min

Forming Thickness:

0.3-0.8mm

Highlight:

Snap Lock Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

negotiable

Packaging Details

Film nad steel

Delivery Time

50 days after deposit

Payment Terms

Supply Ability

10 sets/month

Product Description

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine

Standing seam roof panels have been used on roofs of traditional and contemporary homes for more than a century and these standing seam metal roofing panels are commonly used on roofs of commercial businesses because of the roofing's outstanding durability.
These standing seam roof panels have area clean and graceful lines that have been an enduring favorite on a wide range of architecture.

Technical Parameter:

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	10-12 meters/min(not include cutting time)
1.2	Rolling thickness	0.3mm-0.8mm
1.3	Raw material	Color painted coils, Aluminium, Zinc, Galvanized
1.4	Main Motor	7.5KW
1.5	Dimension	About 1100×1600×1200(mm)
1.7	Roller stations	About 16 stations
1.8	Roller material	45#forge steel, coated with chrome
1.9	Shaft diameter	Φ76mm
1.10	Transmission	By chain 1.2 inch
1.11	Material of chain	45# forged steel with frequency quenching, 12A
1.12	Material of cutting	Cr12Mov with quench HRC58-62°
1.13	Tolerance	10m+-1.5mm
1.14	Hydraulic station	4kw

Profile Drawing:

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine 0

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine 1

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine 2

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine 3

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine 4

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine 5

Application:

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine 6

Romania Popular 500mm Coverage Snap Lock Roll Forming Machine 7
