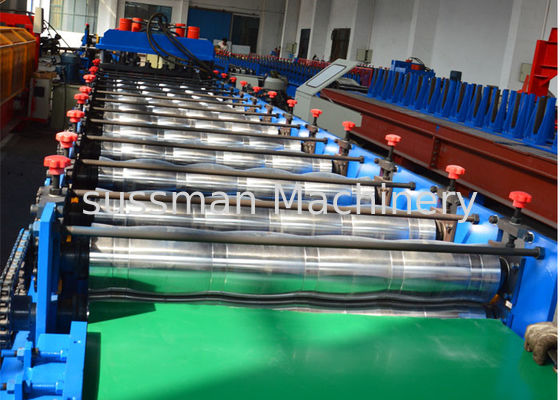

18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW

18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW
18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW 18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW

Large Image :  18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW

Product Details:
Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-GT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60days after deposit
Supply Ability: 10sets per month

18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW

Description
Name: Glazed Tile Roll Forming Machine Material: Color Sheet 0.4-0.8mm
Color Sheet Width: 1250mm Roller Stations: 18 Stations
Way Of Drive: 1.2 Inch Single Chain Forming Speed: 0-12m/min
Roller Material: 45# Steel Shaft Material: 45# Steel
High Light:

roofing sheet roll forming machine

,

metal roof roll forming machine

Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 0-12m/min





Technical Parameter



Size(mm)

8700mm*1600mm*1400mm

Total weight(kg)

about 8000kg

Material of roller

45#steel,quenched HRC58-62 with polishing

Main motor power

7.5kw;

Hydraulic power

5.5kw

Oil pressure

12Mpa

Thickness of the panel

0.4-0.8mm

Working speed

(m/min)

0-12m/min



PLC Type

According with yours demand

(English and Chinese exchange)

Steps of the roller

16 steps

Material of cutting blade

CR12

Feeding width

1250mm







Application


This type of roll forming machine has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW 0





Working Flow of Glazed Tile



Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting – product to run out table





Package of Groll forming machine



1.Tighten to container with steel wire rope and welded angel iron.
2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic)
3.PLC control system and moter pump are packed with water-proof plastic coverage.

18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW 1





Customers' Visiting & Exhibition

18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW 218 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW 3

18 stations Glazed Tile Roll Forming Machine / Roof Panel Roll Forming Machine 5.5KW 4
