Automatic Wall Panel Roll Forming Machine Material Thickness 0.4-0.7mm
1. Technical Parameter
Rolling Speed : 10-12m/min(cutting time is not include)
Steel sheet Thickness: 0.4-0.7mm color painted sheets
Control System: PLC:
Roller Stations: 18 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ¢75mm,material is 45# forge steel
Maim Motor Power: 7.5kw
Hydraulic Pressure: 12Mpa
Material Of The Stations: Wall plate
Tolerance: +1.5mm
Power supplier:220V, 60HZ,3 phase
Way Of Drive:1.2 inch single chain
Color Of The Machine :blue
The size of the forming machine:8000*1500*1000mm
Machine weight: about 6 tons
2. Working Flow
Uncoiling - Infeed guiding - Roll forming- Cut to Length-Out put table
3. Machine Components
5 tons passive decoiler |
1 set |
Main roll forming machine |
1 set |
PLC control box |
1 unit |
Hydraulic station |
1 unit |
Out tables |
2 units |

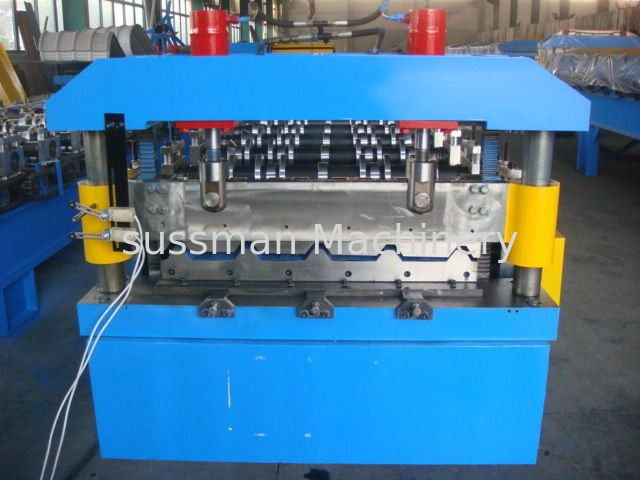

4. Machine Photo
4. Application
Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.
The colored steel sheet making roll forming machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.
