Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE |
| Model Number | SS-CC |

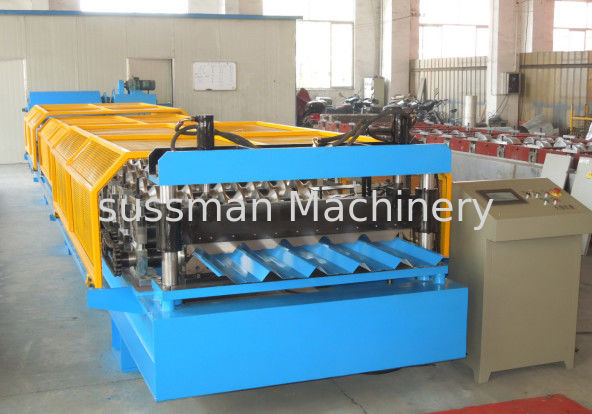

Automatic Cold Roll Forming Equipment For Galvanized Steel / Aluminum Plate
Advantage
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Roof Panel Main Components
| S.N |
Equipment name |
Quantity |
| 1. |
5T passive un-coiler |
1 set |
| 2. |
Main roll forming machine 16 stations drived by chain
|
1 set |
| 3. |
Hydraulic cutting |
1 set |
| 4. |
Control system (including control box) |
1 set |
| 5. |
Out tables |
2 sets |
Roof Panel Technical Parameter
1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min
7. Roller Groups: 16 stations upper and 16 stations down
8. Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel or color-coated coil
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 7.5 Kw
12. Hydraulic power: 5.5Kw
Working Flow of Roof Panel
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profile drawing
Machine list
| Machine list | 5 tons passive de-coiler | 1 set | |
| Main roll forming machine | 1 set | ||
| PLC Control box | 1 unit | ||
| Hydraulic station | 1 unit | ||
| Out tables | 2 units |
Technical Data
5 ton passive de-coiler
Coil inner Diameter: ￠460-520mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm
2. Roll forming machine:
Roll Forming Machine: RF-RP
Rolling Speed : 10-12m/min(cutting time is not include)
Steel sheet Thickness: 0.3-0.8mm color painted sheets
Coil width 1220mm and 1000mm
Control System: PLC Panasonic
Roller Stations: about 18 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠70mm,material is 45# forge steel, Chrome with quenching
Maim Motor Power: 7.5kw Anhui wannan Brand
Hydraulic Pressure: 12Mpa
Material Of The Stations: Wall plate thickness 16mm
Tolerance: +1.5mm
Power supplier: 415V, 50HZ,3 phase
Way Of Drive:1 inch single chain
Color Of The Machine :blue
The size of the forming machine:9000*1500*1000mm
Machine weight: about 6 tons
3.Cutting:
(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.
(2) Material of blade: CR12mov with heat treatment
(3) Length measuring: Automatically
(4) The cutting thickness: 0.3- 0.8mm
(5) Hydraulic Station Power: 4 KW
4. Out table:
It adopts welded steel and supported roller to transmit the products.
Size: 4000*1000*1000mm
5. Control Box:
Electrical control system part
(1) Power supplier: 415V, 50 Hz, 3Phase (adjusted with the requestment)
(2) length & quantity measurement automatically;
(3) length & quantity controlled by PLC, Panasonic
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)
