Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi China |
| Brand Name | Sussman |
| Certification | CCC, SGS, ISO9001, CE |
| Model Number | SS-DL |

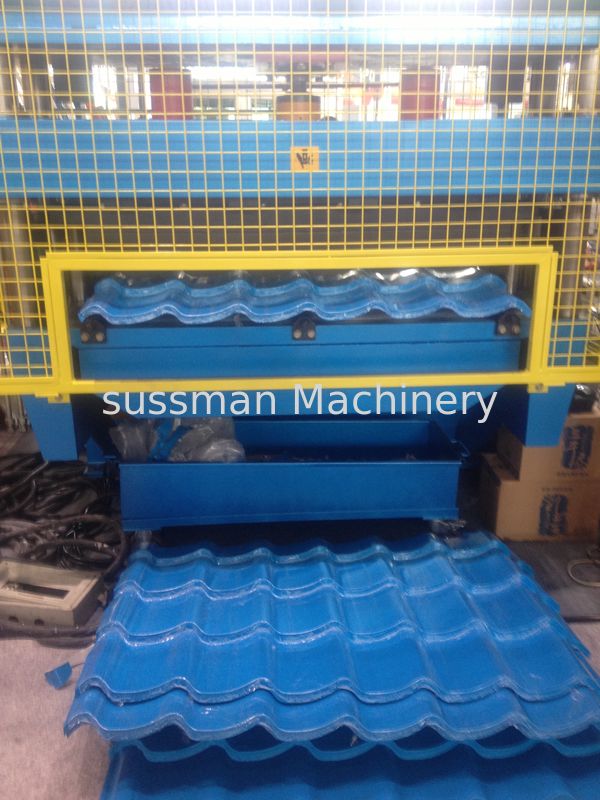

Glazed tile roll forming machine
Technical Parameter
|
Item NO.
|
Description
|
Offered specification
|
| 1 | Forming speed |
15 M/ Min
|
| 2 | Material thickness |
0.25--0.8mm
|
| 3 | Raw material |
Colour galvanized coils
|
| 4 | Dimension |
8000*1700*1500mm about
|
| 5 | Levelling device |
7 roller levelling including 3 top rollers and 4 bottom rollers
|
| 6 | Roller stations |
16 stations
|
| 7 | Roller material |
bearing steel, quenching treatment
|
| 8 | Shaft diameter |
Φ75mm ,material is 45# forge steel
|
| 9 | Transmission |
By chain 1 inch 20A double chain with longer shafts
|
| 10 | Material of chain |
45# forged steel with frequency quenching, 12A
|
| 11 | Material of cutting |
Cr12Mov with quench HRC58-62°
|
| 12 | Main motor power |
7.5kw
|
| 13 | Motor power of hydraulic station |
4kw
|
| 14 | Hydraulic station pressure |
12Mpa
|
| 15 | Tolerance |
6m+-1.5mm
|
| 16 | Frame |
H Beam
|
Main Components
| Serial No. | Commodity & Description | Quantity |
| 1 | 5T manual uncoiler | 1 set |
| 2 | Leveing guiding | 1 set |
| 3 | Servo feeding device | 1 set |
| 4 | Main roll forming machine | 1 set |
| 5 | Hydraulic station | 1 set |
| 6 | Cutting device | 1 set |
| 7 | Finished products tabel | 1 set |
| 8 | PLC control system | 1 set |
| 9 | Out tables | 2 sets |
| 10 | Spare parts | 1 set |
Machine Working Flow
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
Main Profile Drawing of Product
After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
