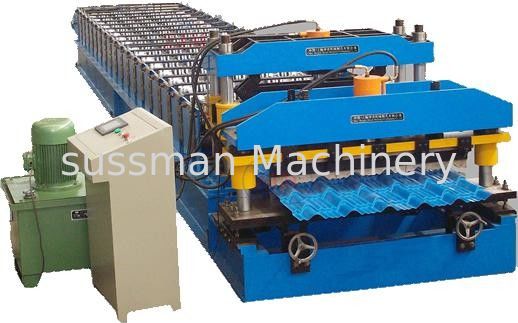

12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations

12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations
12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations 12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations 12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations 12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations

Large Image :  12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations

Product Details:

Place of Origin: China
Brand Name: Sussman
Certification: CE ISO
Model Number: RF-GL

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: steel
Delivery Time: 45-60days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Type: Steel Frame & Purlin Machine Production Capacity: 12-15m/min
Dimension: 12000*1400*1000mm Weight: 7T
Voltage: 380V Power(W): 7.5kw
High Light:

roofing sheet roll forming machine

,

metal roof roll forming machine

Glazed Tile Technical Parameter


1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min
7. Roller Groups: 16 stations upper and 16 stations down
8. Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel or color-coated coil
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 7.5 Kw
12. Hydraulic power: 5.5Kw

Glazed Tile Main Components



S.N Equipment name

Quantity
1. 5T passive un-coiler

1 set
2.

Main roll forming machine 16 stations drived by chain


1 set
3. Hydraulic cutting

1 set
4. Control system (including control box)

1 set
5. Out tables

2 sets

























Advantage for Glazed Tile


1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable


Working Flow of Glazed Tile


Decoiler----Feeding---Roll forming---Cutting---Run out tables

Machine pictures



12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations 0



12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations 1



Product drawing



12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations 2



12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations 3



Application



12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations 4



12000 * 1400 * 1000mm Roof Sheet Roll Forming Machine 7.5kw 16 Stations 5
