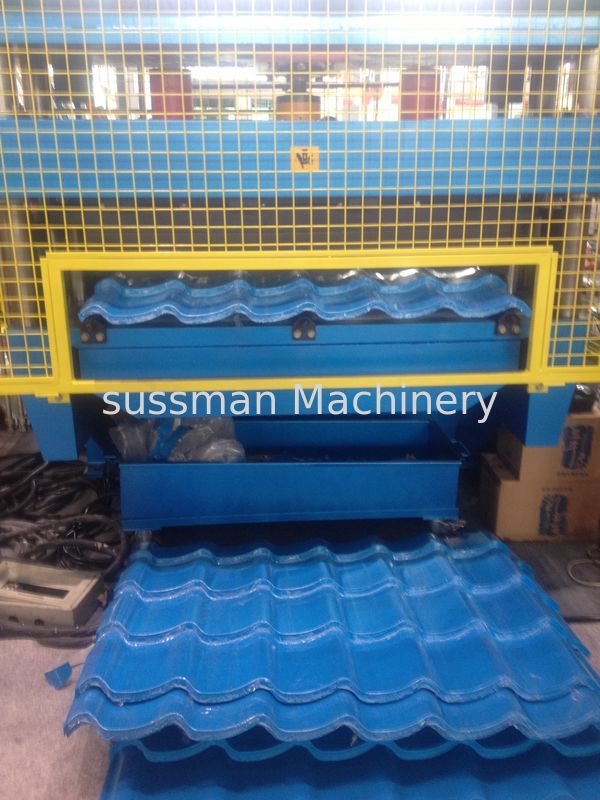

8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control
  • 8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control
  • 8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control
  • 8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control

8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE ISO SGS
Model Number RP
Product Details
Maim Motor Power:
7.5KW
Roller Stations:
16 Stations
Color Steel Sheet Width:
1250mm
Roll Forming Machine:
8000kg
Control System:
PLC
Overall Size:
8700mm×1622mm×1400mm
High Light:

roofing sheet roll forming machine

,

roof tile roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
negotiable
Packaging Details
film and steel
Delivery Time
60 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
20 Set per month
Product Description

8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control





Profile drawing



8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control 0

Roll forming machine



Color Steel Sheet Thickness: Color Sheet and galvanized coils 0.3~0.8mm

Color Steel Sheet width: 1250mm

Roller Stations: 16 stations

Way Of Drive:1.2 inch single chain

The speed of the roll forming machine:0-12m/min

Roller Material: 45# forge steel, coated with chrome

Shaft Material and DIA:¢76mm, material is 45# forge steel

Maim Motor Power: 7.5kw

Error of Cutting Distance of Glazed Tile: ±1-2mm

Roll Forming Machine: 8700mm×1622mm×1400mm

Roll Forming Machine: 8000kg






8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control 1



8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control 2

8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control 3

Application



8000Kgs High Precision Glazed Steel Tile Roll Forming Equipment with PLC Control 4



Technology Index ( Other components)



Cutting distance≥150mm

Temperature of the working environment of the production line: 0—40 Celsius

Humidity of the working environment of the production line: 5-85 (No dew)

Working Voltage: Three Phase Voltages 380V (AC)

Working Environment: No corrosive gases, less dust.

Error of Cutting Distance of Glazed Tile: ±1-2mm



The main description



Roll Forming Machine: CLASIC

Control System: PLC



Un-coiler:



5 ton Manual



UnCoiler : 5 ton hydraulic decoiler Optional

Decoiling Holder: 2200mm×1620mm×1700mm

inside diameter of the uncoiler:508-610mm



Press parts:



Type:Hydraulic

Hydraulic Station Power: 5.5kw

Size of the press parts: 2000*1800*1500mm



Cutting parts:



Type Hydraulic

Max. cutting thickness:1mm

Hydraulic Station Power: 5.5kw

Automatic Hydraulic Cutting Machine: 400mm×1500mm×1100mm

Material Of Cutting: Cr12Mov quenching 58-62℃

Automatic Hydraulic Cutting Machine: 400kg



Out table:

Size of the out table: 6000*1350*1200mm
