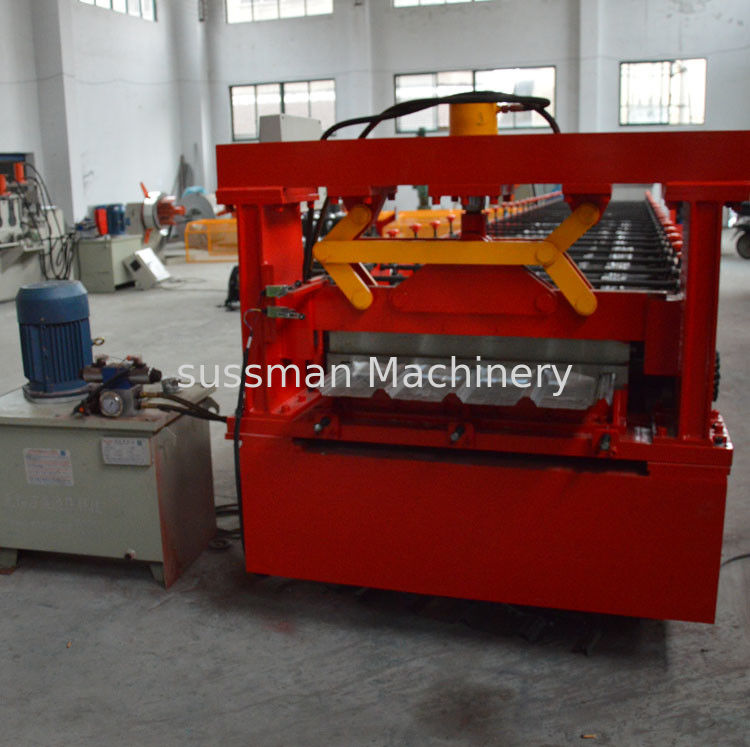

High Tensile Roof Sheet Panel Roll Forming Machine 22 Roller Stations

High Tensile Roof Sheet Panel Rollformer Machine 22 Roller Stations



Product Description







Flow chart



Decoiler--Material Guiding--Roll forming --Hydraulic System--Post Cutting--Products collecting





Product Application



This machine takes GI/PPGI as raw material, the inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.



TECHNICAL PARAMETERS FOR ROLL FORMING MACHINE
Serial Number	Item	Parameters	Remark
Applicable material	Type	GI/PPGI
	Thickness	0.25-0.6MM
	Yield strength(Mpa)	G245-G550
Main performance parameters	Forming speed(M/MIN)	12-20M/MIN
	Machine size(L×W×H)	9*1.5*2	Refer to the machine
	Power supply(KW)	7.5+4.0	Motor and Hydraulic Motor
MACHINE COMPONENTS FOR PANEL ROLL FORMING MACHINE
Name	Model/name	Quantity	Technical description
1.Decoiling system	Hydraulic decoiler	1 set	Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine	Material Guiding System	1 set	For feeding in a right position no Deviation.
	Main Roll Forming Machine	1 set	About 22 steps, motor driving and chain transmission. Wall plate structure.
3.Cutting system	Hydraulic Cutting Device		postcutting
4.Hydraulic system	Hydraulic Station	1 set	Providing the power of cutting.
5.Control system	PLC Control System	1 set	PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system	Exit rack	2 PCS	no power.







Company Information

Sussman Machinery manufacturing Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile
of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.

Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
