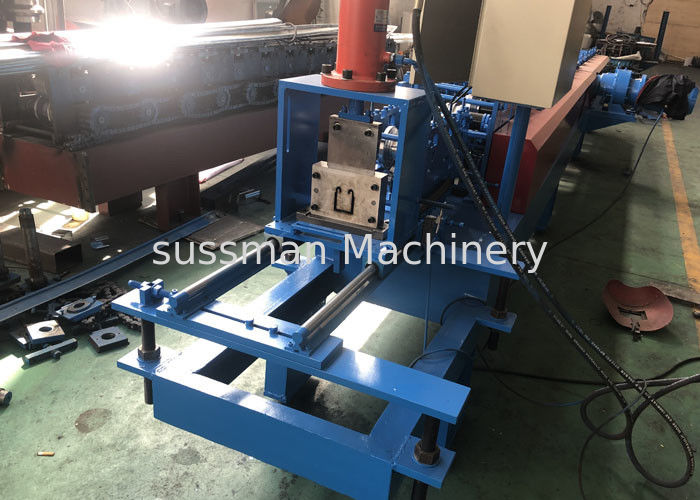

Post Cutting Shutter Door Guide Rail Roll Forming Machine With 12 Months
This machine is made up of roll forming machine,manual decoiler,cutting machine,PLC computer control and hydraulic system,out put tables.
Roller shutter door roll forming machine than traditional equipment with high efficiency, low energy consumption, and reduce environmental pollution, the steel structure also has a considerable breakthrough, bring more benefits to the market, with galvanized steel or different color steel or aluminum plate as raw material pressure equipment production line rolling shutter door, product color plate production volume gate brilliant color, do not fade, do not rust, widely used in store, workshop, warehouse, fire partition,etc.
Our Shutter door roll forming machines have made and exported to many oversea countries,like Nicaragua,Algeria,South Africa.
Shutter Door Machine Technical parameter
1. Steel Sheet Thickness: 0.7-1.2mm (depend on requirement )
2. Covered Width: 75mm,100mm,120mm,etc ( depend on profile )
3. Coil Width: depend on profile
4. Decoiler: Manual Decoiler
5. Capacity of Decoiler: 3 Ton
6. Forming Speed: 0-12m/min
7. Roller Groups: 12 stations roller
8. Roller Material: 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
9. Roller shaft:45# high grade steel
10.Principal Axis: 45# high grade steel with quenching treatment
11.Drive: by 1 inch chain
12.Machine weight: About 3.5Ton
13.Machine Size: About 5500m* 600*1000mm
Shutter Door Machine Main Components
3 Tons manual decoiler
Coil inner Diameter: 460mm~520mm
Max out diameter of the coil: 800mm
Expansion: Manual with brake
Max Coil Width: 500mm
Cutting way: Stop to cut
Oil pump statio:1set.
Hydraulic power: 4 kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Out put tables
It adopts welded steel and supported roller to transmit the products.
Rolling Shutter Door Machine Working Flow
De-coiler—→feeding with guide—→ roll forming machine—→hydraulic cutting&punching —→ run out table
