Shutter Door Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.ISO,CE |
| Model Number | SM-OP |

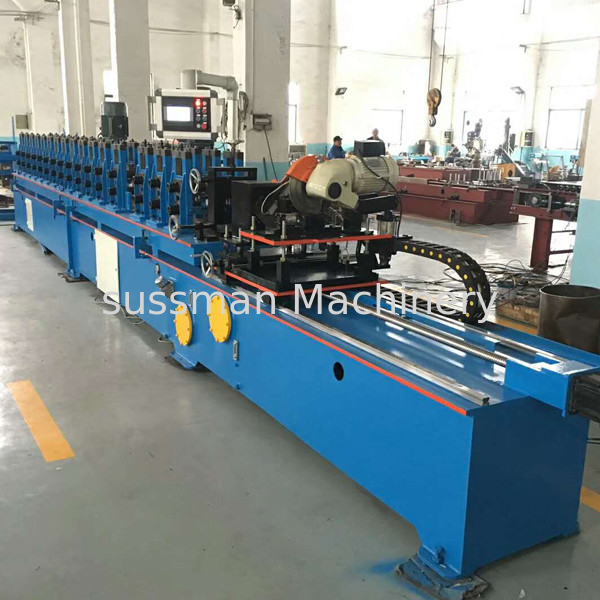

0.4-1.2mm Thickness 40mm 60mm 70mm Steel Octagon Pipe Roll Forming Machine For Roller Shutter Door
Machine Technical Data
| 1.Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
| 2.Installation Dimension (L*W*H): | 9.5m*1.0m*1.2m |
| 3.Main motor power | 7.5KW |
| 4.Hydraulic station power | 4KW |
| 5.Thickness of material | 0.4-1.2mm |
| 6.Diameter of principal axis | Φ70 |
| 7.Material expand width | as profile |
| 8.Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 9.Material of roller | High grade Gcr15# forged steel plated with hard chrome plating |
| 10.Controlling system | PLC |
| 11.Processing speed | 8-12m/min |
| 12.Processing precision within | +-1.00mm (depend on design) |
| 13.Material of cutting blade | Cr12 mould steel with quenched treatment |
| 14.Kind of drive | 1 inch chain |
| 15.Roller station | 20 Rollers |
| 16.Roller material | high grade 45#steel; Cr12 quenching |
| 17. Leak frame load-bearing | 6T |
Production Line Machine List
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
3T manual uncoiler |
1 set |
|
2 |
feeding guiding |
1 set |
|
3 |
Main roll forming machine |
1 set |
|
4 |
Output table |
1 set |
|
5 |
Main drive gear box |
1 set |
|
6 |
Fly saw cutting |
1 set |
|
7 |
Controlling system (including cabinet) |
1 set |
|
8 |
Water cooling system |
1 set |
|
9 |
Cassette |
2 sets |
Standard Profile
Octagonal tube is accesory of shutter slat door. Normally we can make size 40mm,60mm,70mm. Also we customized the size as the client's requirement.
Normally one roll forming machine produce one size of octagonal tube. If you want to produce more size in one machine, we recommend cassettes to achieve profile change, they share one machine frame, save more space and costs.
Our Exhibition
Loading pictures
Application
Octagon Pipe Shutter Door Roll forming Machine Applicable to commercial facade, garage, shopping malls, hospitals, factories and mines enterprises and so on public place or residence. Especially it was large and inconvenient installation ground body place convenient and quick open..
Our Service
1. We can produce the special machine,send your drawing to us,we can design for you.
2. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.
