Shutter Door Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-SD |

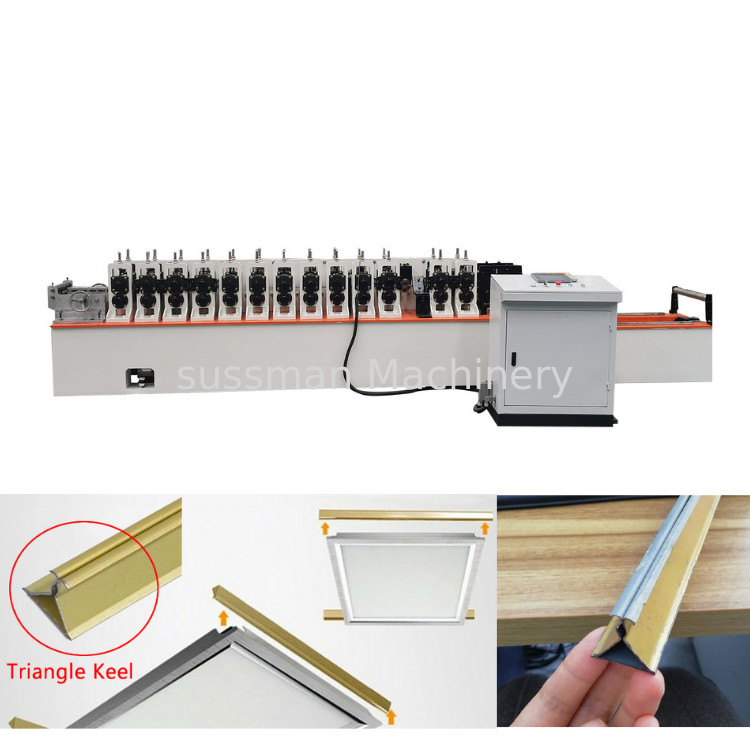

0.3-0.6mm Material Thickness 25*22mm Dimension Triangle Keel Suspended Ceiling Grid Roll Forming Machine
Technical Parameter
| Items | Specifications | |
| Material of coil | Material Thickness | 0.6mm Aluminum galvanized steel cooil |
| Forming system | Rolling Speed | About 12m/min line speed |
| Roller Stations | About 12 stations | |
| Roller Material |
Gcr15 Steel with quenching 60mm shaft
|
|
| Maim Motor Power | 5.5 kw motor | |
| hydraulic station Power | 4 kw | |
|
Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
380V, 50HZ,3 phase Also can satisfy Customer’s require |
| Control System | PLC control system | |
| Weight | About 3tons | |
| Way Of Drive | Gear or Chain | |
| Size of machine | Length 5500mm* Width 600mm* Height 1000m | |
| Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. |
||
| S.N |
Equipment name |
Quantity |
| 1 |
3T passive un-coiler |
1 set |
| 2 |
Feeding and guide device |
1 set |
| 3 |
Main roll forming machine |
1 set |
| 4 |
Hydraulic cutting and station |
1 set |
| 5 |
Control system (including control box) |
1 set |
| 6 |
Out tables |
2 sets |
| 7 |
Spare Parts |
1 packages |
Profiles of products
Advantage for machine
1) We have about 20 years experience in steel machine line, experienced workers and engineers.
2) We have CNC process to produce the rollers,grinder machine to smooth the frame.make it's more precise.and less tollerance.and after assebling,inspect the whole machine by trail production before delivery.
3) On time delivery.Oversea engineers services available.
4) Adopt newest tech across the world to ensure our quality, provide customers good quality machines with best price.
5) Favourtie price for machine parts all the life.
