Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine
  • Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine
  • Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine
  • Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine
  • Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine
  • Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine

Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine

Place of Origin China
Brand Name Sussman
Certification SGS.ISO,CE
Model Number SM-OP
Product Details
Material Thickness:
0.3mm-1.0mm
Forming Stations:
22 Stations
Roller Material:
GCr15 Steel
Dirve System:
Gearbox Drive
Weight:
8000kgs
Cutting Method:
Fly Saw Cutting
Material:
45# Steel
Speed:
20-30m/min
High Light:

Steel Rolling Shutter Door Forming Machine

,

Full Automation Shutter Door roll Former

,

Octagonal Tube Rolling Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
standard packing film and steel
Delivery Time
60days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

Full-Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Pipe Roll Forming Machine





Machine Technical Data



1)Suitable raw material:
0.5---1.2mm colored steel sheet or galvanized steel
2)Main motor power:
15Kw
3)Forming speed:
20-30m/min
4)Number of forming stations:
24
5)Shafts diameter:
Ф75mm
6)Rollers manufacture:
45#steel, machine tooling on the surface and polished HRC48-52,chromed on the surface
7) Holes punching:
As profile
8) Punching mould material:
Cr12 Mov,HRC58-62
9) We adopt
press punching
7)way of cutting:
saw cutting
8)Cutting length tolerance:
≤±1.5mm





Production Line Machine List


Serial No.

Commodity & Description

Quantity

1

3T automatic uncoiler

1 set

2

feeding guiding

1 set

3

Main roll forming machine

1 set

4

Output table

1 set

5

Main drive gear box

1 set

6

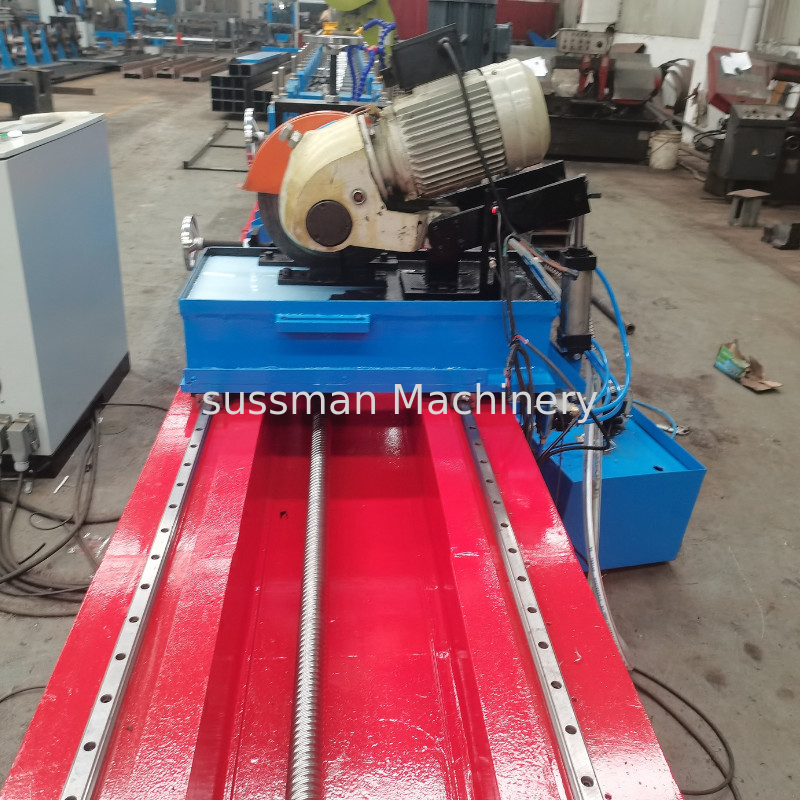

Fly saw cutting

1 set

7

Controlling system (including cabinet)

1 set

8

Water cooling system

1 set

9

Safety cover

2 sets




Standard Profile



The shutter door octagon pipe roll forming machine is used to produce octagon pipe for PU shutter door

Normally we can make size 40mm,60mm,70mm shaft. Also we customized the size as the client's requirement.
Normally one roll forming machine produce one size of octagonal tube. If you want to produce more sizes in one machine, we recommend cassettes to achieve profile change, they share one machine frame, save more space.



Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine 0

Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine 1




Application



Octagon Pipe Shutter Door Roll forming Machine Applicable to commercial facade, garage, shopping malls, hospitals, factories and mines enterprises and so on public place or residence. Especially it was large and inconvenient installation ground body place convenient and quick open..



Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine 2



Octagonal pipe machine photo

Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine 3

Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine 4


Our Service


1. We can produce the special machine,send your drawing to us,we can design for you.

2. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.
