Shutter Door Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-SD |
0.6mm Thickness Stainless Steel 14*10mm Size U Shaped Small Profile Roll Forming Machine
Technical Parameter
|
1
|
Raw Material
|
Type
|
Stainless steel |
|
Thickness
|
0.3-0.6mm
|
||
|
2
|
Decoiler
|
Operation
|
Manual/ Hydraulic for option
|
|
Weight Capacity
|
3T
|
||
|
3
|
Main Body
|
Roller Station
|
16 rows
|
|
Diameter of Shaft
|
60mm
|
||
|
Material of Rollers
|
Gcr15 | ||
|
Material of shaft
|
45# steel with chrome 0.05mm
|
||
|
Transmission
|
Gear
|
||
|
4
|
Cutter
|
Operate
|
Automatic Hydraulic / Manual type
|
|
Blade material
|
Cr12MOV
|
||
|
5
|
Power
|
Pump motor for cutter
|
4KW
|
|
Main Motor
|
5.5KW
|
||
|
Voltage
|
380V 50Hz 3 Phase
|
||
|
6
|
|
Electric Box
|
PLC control system , Inverter
|
|
Language
|
English / Chinese
|
||
|
7
|
Speed
|
0-10M/min
|
|
| S.N |
Equipment name |
Quantity |
| 1 |
3T manual un-coiler |
1 set |
| 2 |
Feeding and guide device |
1 set |
| 3 |
Main roll forming machine |
1 set |
| 4 |

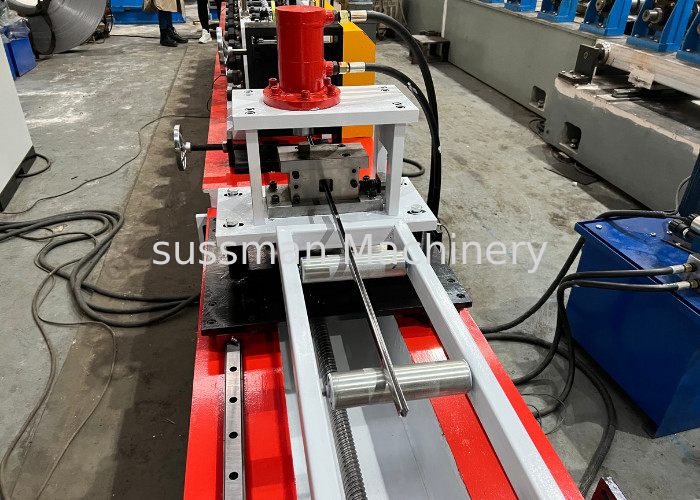

Hydraulic cutting device |
1 set |
| 5 |
Control system |
1 set |
| 6 |
Out tables |
2 sets |
| 7 |
Spare Parts |
1 packages |
Profiles of products
Advantage for machine
1) We have about 20 years experience in steel machine line, experienced workers and engineers.
2) We have CNC process to produce the rollers,grinder machine to smooth the frame.make it's more precise.and less tollerance.and after assebling,inspect the whole machine by trail production before delivery.
3) On time delivery.Oversea engineers services available.
4) Adopt newest tech across the world to ensure our quality, provide customers good quality machines with best price.
5) Favourtie price for machine parts all the life.
