| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.ISO,CE |
| Model Number | SM-OP |
40mm 60mm 70mm Roller Shutter Door Octagon Tube Roll Forming Machine With Fly Saw Cutting
Machine Technical Data
|
Feeding materials |
0.8-1.2mm, galvanized steel |
|
|
Machine frame type |
Cast iron structure |
|
|
Forming station |
22 stations roller forming |
|
|
Main shaft material |
45# Round steel, heat treatment,HRC40-45,Φ70mm |
|
|
Rollers material |
Gcr15,ball bearing steel, quenching HRC 52-55C°, chrome coating 0.05mm |
|
|
Bearing |
Chinese famous brand/HRB brand |
|
|
Transducer |
YASKAWA ,Japan |
|
|
Operation system |
Operation cabinet + Emergency remote control unit |
PLC Siemens brand. |
|
Encode |
Omron, Japan brand |
|
|
Other electricals |
Schneider and Omron brand. |
|
|
Line of dimension(L-W-H) |
Approx 9500×900x1300mm |
|
|
Brand |
Chinese famous brand |
|
|
Transmission |
Gearbox |
|
Production Line Machine List
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
3T hydraulic uncoiler |
1 set |
|
2 |
Pneumatic feeding |
1 set |
|
3 |
Main roll forming machine |
1 set |
|
4 |
Output table |
1 set |
|
5 |
Main drive gear box |
1 set |
|
6 |
Fly saw cutting |
1 set |
|
7 |
Controlling system (including cabinet) |
1 set |
|
8 |
Water cooling system |
1 set |
|
9 |
Safety cover |
2 sets |
Standard Profile
Normally we can make size 40mm,60mm,70mm shaft. Also we customized the size as the client's requirement.
Normally one roll forming machine produce one size of octagonal tube. If you want to produce more sizes in one machine, we recommend cassettes to achieve profile change, they share one machine frame, save more space.
Application
Octagon Pipe Shutter Door Roll forming Machine Applicable to commercial facade, garage, shopping malls, hospitals, factories and mines enterprises and so on public place or residence. Especially it was large and inconvenient installation ground body place convenient and quick open..

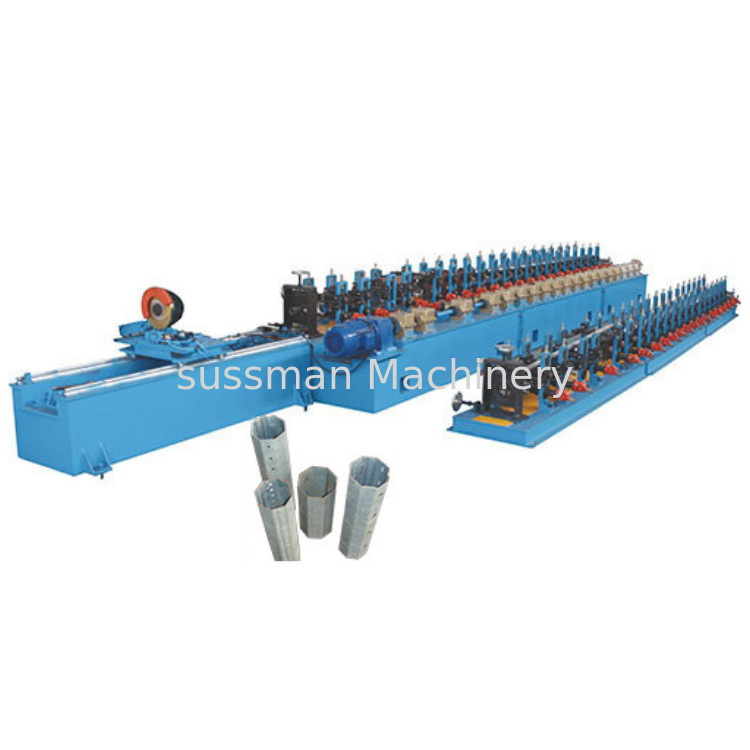

Octagonal pipe machine photo
Compmany information
0ur factory is more than 5,000m2 and 80 workers,which has 10 machining processing center, assembly area and display area.
Our main production is all kinds of steel profile roll forming machine, specially light steel frame, C Z M Purlin, racking upright, box beam, step beam, cable tray, shutter door, door frame, highway guardrail W beam, strut channel, scaffolding board and roof panel all of different forming machines ect.
The most advantage technology and most professional design software COPRA are introduced to customize international standards of equipment for customers. Equipment produced by our company has the advanced drive system and the whole design. The hydraulic system and motor of the device were integrated within one host, saving equipment space taking, improving convenience and safety in using equipment. All the equipment electrical components were adopted from internationally renowned brand to ensure the good working performance.
1. We can produce the special machine,send your drawing to us,we can design for you.
2. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.
