0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations
  • 0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations
  • 0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations
  • 0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations
  • 0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations
  • 0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations
  • 0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations

0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE,SGS,ISO
Model Number SM-SD
Product Details
Material Thickness:
0.3-0.6 Mm Aluminum Galvanized Steel
Forming Speed:
0-10 M/min
Main Motor Power:
5.5Kw
Forming Stations:
12 Stations
Hydraulic Power:
4Kw
Shaft Diameter:
60mm
Weight:
3 Tons
Roller Material:
45# High Grade Steel
High Light:

Spring tee forming machine

,

Triangle Keel tee forming machine

,

galvanized steel Tee Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
60 days after deposit
Payment Terms
T/T L/C, Western Union, MoneyGram, D/P
Supply Ability
10 sets per months
Product Description

0.3-0.6mm Material Thickness 30*25mm Dimension Triangle Keel Spring Tee Roll Forming Machine



Technical Parameter



  Items Specifications
Material of coil Material Thickness 0.6mm Stainless Steel
Forming system Rolling Speed About 10m/min line speed
  Roller Stations About 12 stations
  Roller Material

Gcr15 Steel with quenching 60mm shaft



  Maim Motor Power 5.5 kw motor
  hydraulic station Power 4 kw

Cutting

system

Material Of Cutting CR12 with quench treatment
  Hardness HRC58-62
  Tolerance +-1.5mm
  Servo motor 1.8kw Delta
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s require

  Control System PLC control system
  Weight About 3.5 tons
  Way Of Drive 1 inch single chain
  Size of machine Length 5500mm* Width 600mm* Height 1000m
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.





Main Components



     S.N

   Equipment name


   Quantity
   1

    3 Tons passive un-coiler


    1 set
   2

    Feeding and guide device


    1 set
   3

    Main roll forming machine


    1 set
   4

    Hydraulic station


    1 set
   5

    Control system (including control box)


    1 set
    6

    Out tables


    2 sets
    7

    Spare Parts


    1 packages

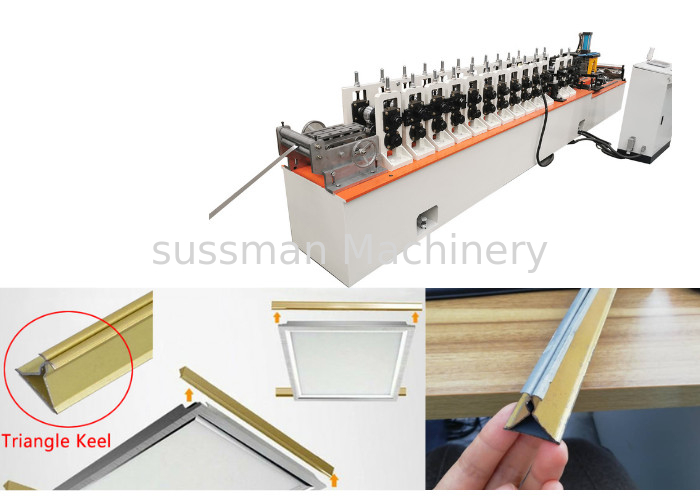

Profiles of products
 0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations 00.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations 1

0.6mm Galvanized Steel Triangle Keel Spring Tee Roll Forming Machine 12 Stations 2





Advantage for machine


1) We have about 20 years experience in steel machine line, experienced workers and engineers.
2) We have CNC process to produce the rollers,grinder machine to smooth the frame.make it's more precise.and less tollerance.and after assebling,inspect the whole machine by trail production before delivery.
3) On time delivery.Oversea engineers services available.
4) Adopt newest tech across the world to ensure our quality, provide customers good quality machines with best price.
5) Favourtie price for machine parts all the life.
