High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine

High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine
High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine
High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine

Large Image :  High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: Sussman
Certification: SGS.ISO,CE
Model Number: SM-OP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packing film and steel
Delivery Time: 60days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month

High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine

Description
Name: 70mm Octagon Shaft Roll Forming Machine Material: 45# Steel
Material Thickness: 0.8mm-1.2mm Forming Stations: 22 Stations
Roller Material: GCr15 Steel Dirve System: Gearbox Drive
Weight: 8000kgs Cutting Method: Fly Saw Cutting
High Light:

GCr15 Steel Shutter Door Roll Former

,

70mm Steel Shutter Door roll Former

,

Octagon Tube Pipe Roll Forming Machine

High Speed 40 60 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine





Machine Technical Data



40 60 70mm Steel Octagon Tube Pipe Roller Shutter Door Roll Forming Machine
Metal material thickness
0.3-0.5mm
Metal material width
As profile
Roller Stage
20 forming rows
Roller Material
Gcr15 steel with chromium plate
Diameter of shaft
Φ60mm
Material of cutting blade
Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine
350H Steel
Side Panel of Machine
25mm
Cutting Type
No Stop Sawing Cutting
Motor power
5.5 kw
Hydraulic power
3 kw
Productivity
15-20 meters per minute
Plc control system
Delta or as customer require




 Production Line Machine List


Serial No.

Commodity & Description

Quantity

1

3T automatic uncoiler

1 set

2

feeding guiding

1 set

3

Main roll forming machine

1 set

4

Output table

1 set

5

Main drive gear box

1 set

6

Fly saw cutting

1 set

7

Controlling system (including cabinet)

1 set

8

Water cooling system

1 set

9

Safety cover

2 sets




Standard Profile



Normally we can make size 40mm,60mm,70mm shaft. Also we customized the size as the client's requirement.
Normally one roll forming machine produce one size of octagonal tube. If you want to produce more sizes in one machine, we recommend cassettes to achieve profile change, they share one machine frame, save more space.

High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine 0

High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine 1




Application



Octagon Pipe Shutter Door Roll forming Machine Applicable to commercial facade, garage, shopping malls, hospitals, factories and mines enterprises and so on public place or residence. Especially it was large and inconvenient installation ground body place convenient and quick open..



High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine 2

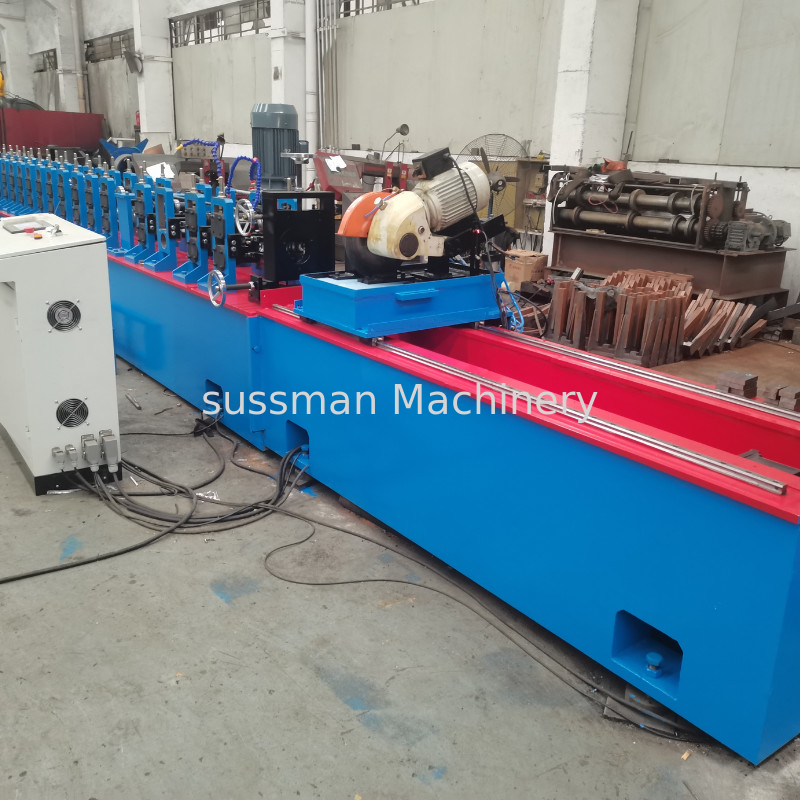

Octagonal pipe machine photo

High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine 3

High Speed 70mm Steel Roller Shutter Door Octagon Tube Pipe Roll Forming Machine 4


Our Service


1. We can produce the special machine,send your drawing to us,we can design for you.

2. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.
