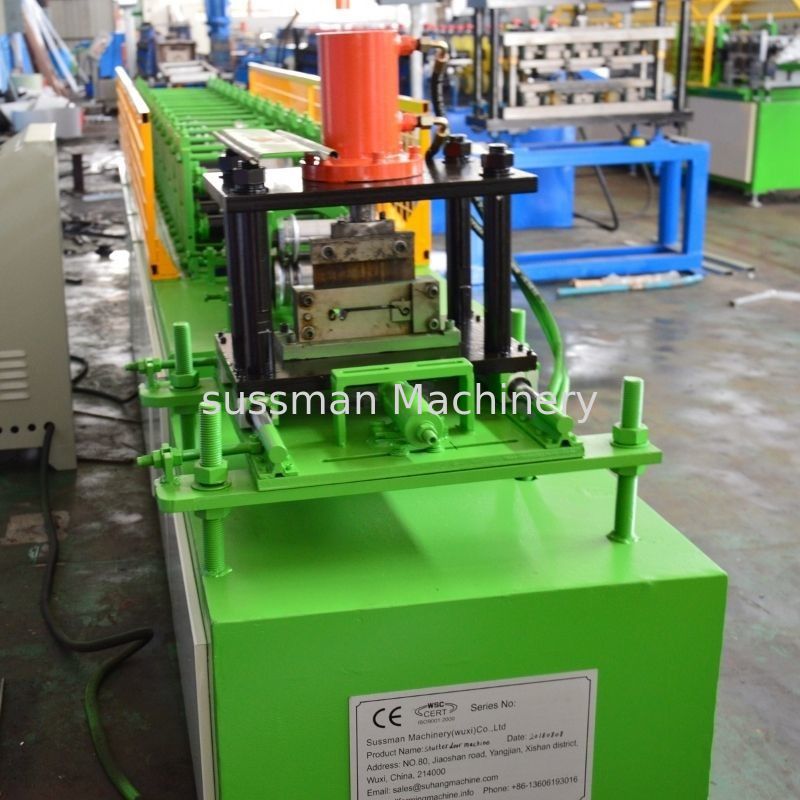

15m/Min 75mm Shutter Door Roll Forming Machine Space Saving

15m/Min 75mm Shutter Door Roll Forming Machine Space Saving
15m/Min 75mm Shutter Door Roll Forming Machine Space Saving

Large Image :  15m/Min 75mm Shutter Door Roll Forming Machine Space Saving

Product Details:

Place of Origin: China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: SM-SD-045

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 15,000 per set
Packaging Details: standard film
Delivery Time: 30-90 days
Supply Ability: 5 sets per month
Detailed Product Description
Working Speed: 12-15m/min Material: 0.7-1.2mm, Galvanized Coils
Material Of Rollers: GCr15 Steel Forming Steps: About 12 Steps
Electronic Control: Plc Control Delta Cutting: Hydraulic Cutting; Quenching HRC58-62
Chains' Material: 45# Steel Drive System: 7.5 KW
High Light:

75mm Shutter Door Roll Forming Machine

,

15m/min Shutter Door Roll Forming Machine

,

75mm shutter roll forming machine

0.7-1.2mm Garage mental Shutter Door Roll Forming Machine , Metal Forming Equipment PLC Control





1. This machine is made up of roll forming machine,manual decoiler,cutting machine,PLC computer control and hydraulic system,out put tables.



2. The machine is stable,no noise,no shake.



3. It is one unit, the control box and the hydraulic station for the cutting are all put under the machine frame to save space.



4. The touch screen is hang over, it is not under the floor.



5. When you get the machine,it is no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working.



Working flow

decoiler—→level device—→main roll forming machine—→hydraulic cutting—→ run out table

15m/Min 75mm Shutter Door Roll Forming Machine Space Saving 0



Profile drawing



15m/Min 75mm Shutter Door Roll Forming Machine Space Saving 1



Parts of machine

name quantity (set)
De-coiler 1set
Main roll forming machine 1set
Run out table 2 sets
Control panel 1set



The technique data



Materials to form shutter door : 0.7-1.2mm, Galvanized coils

Forming steps: about 12 steps

Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: >¢150

Material of main shaft : 45# high quality steel (diameter>¢50)

Chains’ material: 45# steel, high frequency quenching, circular pitch:38.1; number of teeth: 13

Cutting : hydraulic cutting; quenching HRC58-62

Electronic control: Plc control Panasonic Japanese brand

Dimension of machine: 4500mmX500mmX800mm

Drive system: chain drive, 7.5KW main motor power, working speed:12-15m/min;





15m/Min 75mm Shutter Door Roll Forming Machine Space Saving 2

15m/Min 75mm Shutter Door Roll Forming Machine Space Saving 3
