Product Details:
|
| Materials To Form Shutter Door: | 1.2-2mm, Galvanized Coils | Material Of Rollers: | GCr15 Steel, Precision-machined, High Frequency Quenching HRC58-62, |
|---|---|---|---|
| Diameter Of Rollers: | ＞￠150 | Forming Steps: | About 14 Steps |
| Tolerance: | +-1.5mm | Roller Stations: | 12 Stations |
| Hardness: | HRC58-62 | Weight: | About 3.5 Tons |
| High Light: | cold roll forming machine,sheet metal roll former |
||

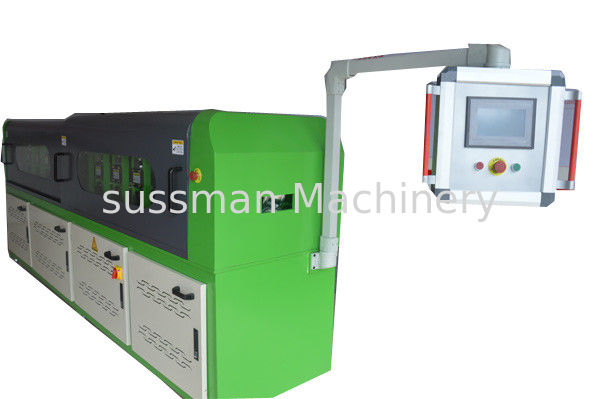

7.5 Kw Shutter Door Roll Forming Machine , Metal Forming Machinery 12 Stations
The external of machine:
| Items | Specifications | Remarks | |
| Material of coil | Material Thickness | 1.2-2mm galvanized | |
| Un Coiler | 3 tons manual | ||
| Forming system | Rolling Speed | 10 m/min | |
| Roller Stations | 12 stations | ||
| Roller Material |
45# Steel with quenching 50mm shaft
|
||
| Maim Motor Power | 7.5 kw | ||
| Hydraulic cutting Power | 4 kw | ||
|
Cutting system |
Material Of Cutting | CR12 with quench treatment | |
| Hardness | HRC58-62 | ||
| Tolerance | +-1.5mm | ||
| Electrical control system | Electric Source |
380V, 50HZ,3 phase Also can satisfy Customer’s require |
|
| Control System | PLC (Panasonic) as list in the note | ||
| Weight | About 3.5 tons | ||
| Way Of Drive | 1 inch single chain | ||
| Size of machine | Length 7500mm* Width 600mm* Height 800mm |
Working flow
decoiler—→level device—→main roll forming machine—→hydraulic cutting—→ run out table
Installation of the machine
The individual components of the machine are installed according to the layout and prepared for the commissioning.
The installation comprises of:
- Installation by Sussman service technicians.
- The following services are included:
- Installation of the machine components.
- Adjustment of the machine components.
- Connection of all motors to the control cabinet.
- Installation of the required safety devices.
Delivery extent does not comprise of:
- Media supply (electrics, compressed air, etc.)to the machine(control cabinet)
- Raw material,process material and fuels
- Raw material for test blocks
- Transport and lifting devices
- Auxiliary staff.
The operators of the plant should be present during the installation in order to become familiar with the new machines.
