Product Details:
|
| Working Speed: | 12-15m/min | Main Motor Powe: | 5.5KW |
|---|---|---|---|
| Drive System: | Chain Drive | Materials: | Galvanized Coils |
| Forming Steps: | About 12 Steps | Electronic Control: | Plc Control |
| Dimension: | 5500mm*500mm*800mm | Material Of Rollers: | GCr15 Steel |
| High Light: | sheet metal roll former,rolling form machine |
||
Metal Chain Drive Shutter Door Roll Forming Machine 12 - 15m / Min Working Speed
Paramters
|
working speed
|
12-15m/mi |
|
main motor power
|
5.5KW |
|
Drive system
|
chain drive |
|
Materials to form shutter door
|
0.7-1.2mm, Galvanized coils |
|
Forming steps
|
about 12 steps |
|
Material of rollers
|
GCr15 steel, precision-machined |
|
Material of main shaft
|
45# high quality steel (diameter＞￠50) |
|
Chains’ material
|
45# steel, high frequency quenching |
|
Cutting
|
hydraulic cutting; quenching HRC58-62 |
|
Electronic control
|
Plc control |
|
Dimension of machine
|
5500mm*500mm*800mm |
Advantages
1. We are design the one unit one machine, the control box and the hydraulic station for the cutting are all
put under the bedding,when you get the machine, the machine is one unit, no need to assemble and
connect the complicate cable of the machine, you only need to connect one main cable
2. the touch screen is hang over, it is not under the floor.
3. the accuracy of our machine is -/+0.5-1mm.
4. the roller is solid and electroplated, which will not have rust.
5. the material are all national standard and cutter will not have burr.
6. the board are all milled and polished.

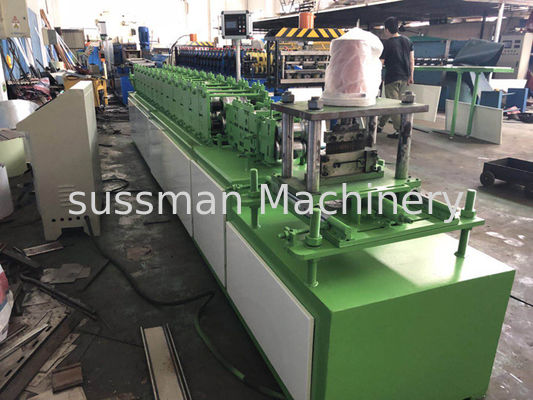

Machine pictures
Application
Rolling shutter is a method of image capture in which a still picture or each frame of a video is captured
not by taking a snapshot of the entire scene at single instant in time but rather by scanning across the
scene rapidly, either vertically or horizontally.
We can customized the machine according to customer's drawing!
