Automatic Shutter Door Roll Forming Machine CE Passed Rail Curving Machine
  • Automatic Shutter Door Roll Forming Machine CE Passed Rail Curving Machine
  • Automatic Shutter Door Roll Forming Machine CE Passed Rail Curving Machine
  • Automatic Shutter Door Roll Forming Machine CE Passed Rail Curving Machine

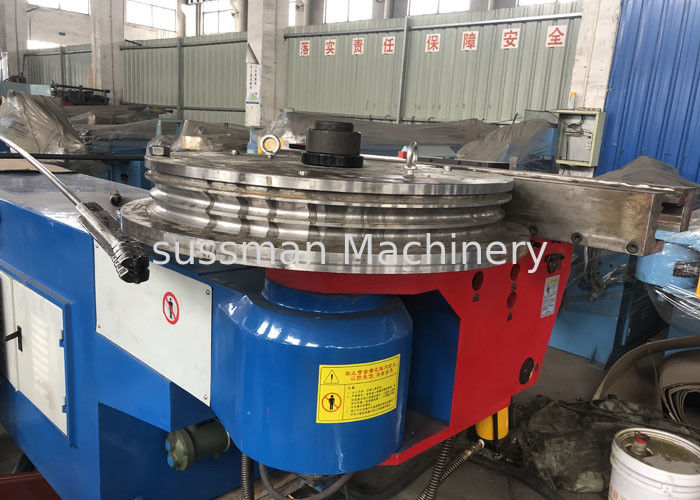

Automatic Shutter Door Roll Forming Machine CE Passed Rail Curving Machine

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE
Model Number SM-RC
Product Details
Material Thickness:
1.5-2.0mm
Hydraulic Power:
7.5Kw
Machine Size:
4800*900*1100mm
Bearing:
Haerbin
Max Curved Degree:
360 Degree
Max Curved Radius:
450mm
High Light:

sheet metal roll former

,

rolling form machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
60 days after deposit
Payment Terms
T/T L/C
Supply Ability
10 sets per months
Product Description





Automatic Hydraulic  7.5KW Rail Curving Machine For Shutter Door




Door Rail Curving Technical Parameter


  Items Specifications
Material of coil Material Thickness 1.5-2mm galvanized
Radius Max curved degree 360 degree
  Max curved radius 450mm
Hydraulic station Y132S 7.5kw
  Pressure 14mpa
Valve BSG-01 DC24 TAFEN
  03-3C2 TAFEN
Bearing   Haerbin
Curved system Curve Speed 10-50 degree/s
Machine size Length 4800mm
  Width 900mm
  Height 1160mm
Machine weight kg 2500kgs
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s require

  contactor SP---(AC220)



Advantage for Supportive Door Rail

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable



Profiles of Door Rail Curving

Automatic Shutter Door Roll Forming Machine CE Passed Rail Curving Machine 0

Automatic Shutter Door Roll Forming Machine CE Passed Rail Curving Machine 1

Automatic Shutter Door Roll Forming Machine CE Passed Rail Curving Machine 2
