Shutter Door Roll Forming Machine
>
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | SM-SD-045 |

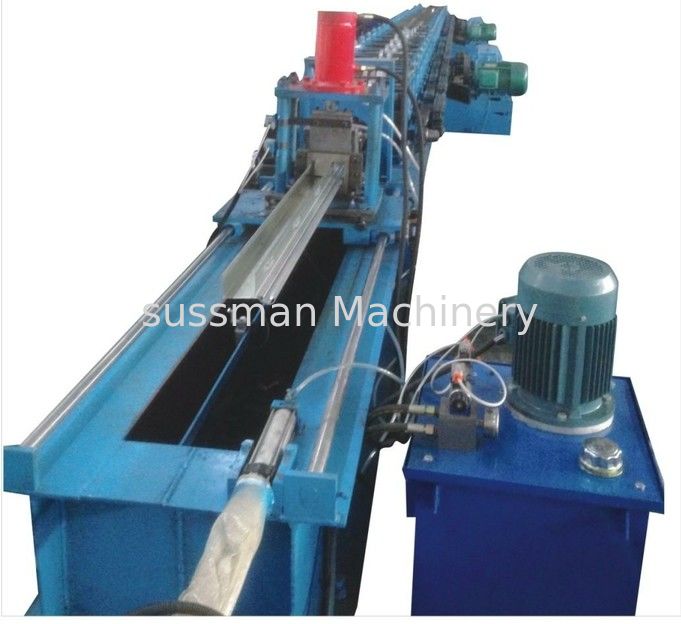

Building Material Rolling Shutter Door Roll Forming Machine 5.5KW Main Motor Power
The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.
Technical Parameters
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.8-1.2mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 5000mmx800mmx1400mm |
| 8 | Speed | 8-15m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | 3000-3500KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 8kw |
| 15 | Power of hydraulic system | 4kw |
| 16 | Power of main molding core | 4kw |
Components of Shutter Door Roll Forming Machine
| No | Name | Qty |
| 1 | Decoiler | 1 |
| 2 | Automatic control system | 1 |
| 3 | Hydraulic system | 1 |
| 4 | Automatic cutting | 1 |
| 5 | Products receiving tables | 1 |
Working flow
decoiler—→level device—→main roll forming machine—→hydraulic cutting—→ run out table
Profile drawing
