Shutter Door Roll Forming Machine
>
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | SM-SD-045 |

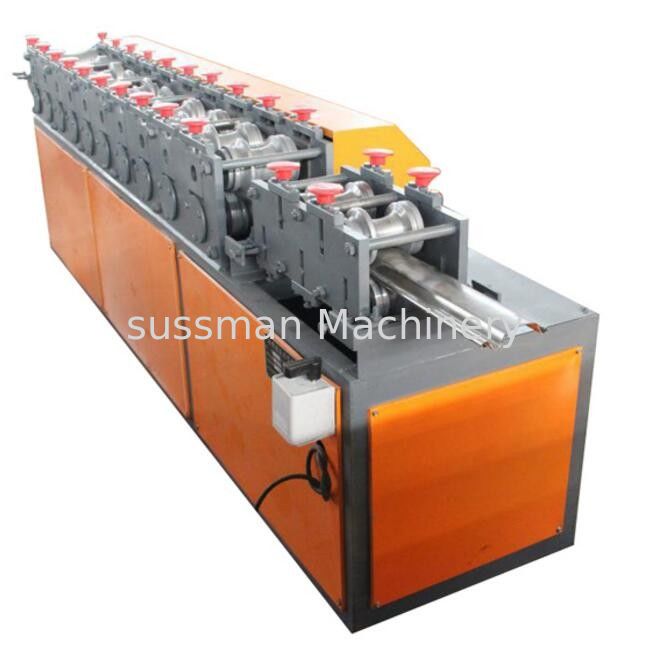

High Grade PLC Control Rolling Up Shutter Door Machine With Embossing Device
Shutter door forming machine is to produce rolling doors of major equipment, the use of galvanized steel or different colors of color steel or aluminum as a raw material, production of color plate rolling gates brilliant color, do not fade, do not rust, fire cut off, easy deformation, strength 3 times higher than the aluminum door.
Technical Parameters
Main Motor Power: 7.5 kw
Hydraulic Station Powder: 3 kw
Hydraulic Oil Pump: CE-310
Sprocket: P-25.4mm
Control System: PLC
Yield Strength: 32Mpa
Diameter of Axis: 80mm
Material Roller: #45 steel hard chrome plating
Processing speed: 8-12m/min
Frame: 30H steel welding
Roller plate thickness: 0.3-1mm galvanized coil
Use: produce all kinds of house,
Equipment parts
Working flow
decoiler—→level device—→main roll forming machine—→hydraulic cutting—→ run out table
