Shutter Door Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE |
| Model Number | SM-DR |

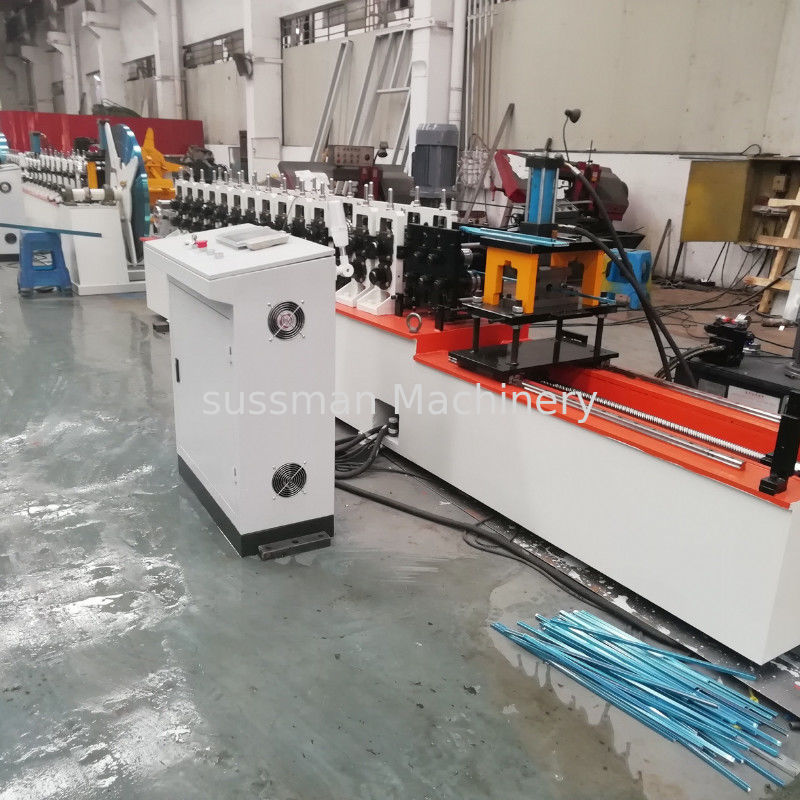

13 Rollers Stainless Steel 0.6mm Sliding Door Channel Roll Forming Machine With High Speed 30m/Min
Door Rail Technical Parameter
Suitable steel plate |
Type |
Stainless steel |
thickness |
0.6mm |
|
Feeding width |
As users needs |
|
Effective width |
As users needs |
|
Production speed |
0.-30m/min | |
Roller stand |
13 rows |
|
Diameter |
60mm | |
Main power |
5.5kw |
|
Pump power |
4kw |
|
Roller material |
Carbon Steel 45# |
|
Blade material |
Cr12, qunched, Cr-plating size 0.05mm |
|
Control system |
PLC Delta Inverter |
|
Main structure of the machine |
300mm H-Beam |
|
Door Rail Main Components
| S.N |
Equipment name |
Quantity |
| 1. |
3T passive un-coiler |
1 set |
| 2. |
Feeding and leveling device |
1 set |
| 5. |
Main roll forming machine
|
1 set |
| 6. |
Hydraulic cutting |
1 set |
| 7. |
Control system (including control box) |
1 set |
| 8. |
Out tables |
2 sets |
Working Flow of Door Rail
Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables
Profiles of Door Rail
