Gearbox Pu Foam Rolling Shutter Door Slats Roll Forming Machine 0.24-0.5mm Thickness

Place of Origin	Wuxi, China
Brand Name	Sussman
Certification	CE，SGS, ISO
Model Number	RF-PU

Product Details

Material Thickness:

0.27-0.4mm Stainless Steel

Main Motor Power:

7.5KW

Roller Material:

45# Forged Steel, Surface Coated With Chrome

Cutting:

Flying Saw Cutting

Cutting Blade Material:

Cr12

Hydraulic Cutting Pressure:

10-12Mpa

High Light:

gearbox rolling shutter door slats roll forming machine

0.5mm rolling shutter door slats roll forming machine

pu foam roller shutter slat machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Film and steel

Delivery Time

60 days after deposit

Supply Ability

10 sets/month

Product Description

0.24-0.5mm Thickness PU Foam Rolling Slat Shutter Door Roll Forming Machine

Technical Parameter:

Forming stands: about 36 stands

Working speed: 8-12m/min

Roller material GCr15: model steel, HRC50-54

Axial diameter: Φ40mm

Main axial material: No 45 steel HRB260-280

Driving part is gear box transmission

PLC control: fix length control ±1mm (Panasonic)

Main components: Schneider

The precision of roller: less than ±0.5mm

Main roll forming machine motor: 380V, 50HZ, 11KW (or according to your requirements)

Machine basement material: H beam Cutting method: flying saw machine

Machine List:

1	De-coiler	1 set
2	Guide Feeding device	1 set
3	main forming machine	1 set
4	Foaming machine (just foamed one owned)	1 set
5	Straighten device	1 set
6	flying saw cutting machine	1 set
7	finished products table	1 set
8	PLC control system	1 set
9	Spare Parts And Tools	1 set

Working Flow:

Decoiler—feedingdevice—mainforming—PU injection---straightendevice——FlysawCutting ---run out table

Gearbox Pu Foam Rolling Shutter Door Slats Roll Forming Machine 0.24-0.5mm Thickness 0

Profile Drawing:

The machine can be customized, if you have your own profile drawing, please send it to us.

Gearbox Pu Foam Rolling Shutter Door Slats Roll Forming Machine 0.24-0.5mm Thickness 1

Gearbox Pu Foam Rolling Shutter Door Slats Roll Forming Machine 0.24-0.5mm Thickness 2

Samples:

Gearbox Pu Foam Rolling Shutter Door Slats Roll Forming Machine 0.24-0.5mm Thickness 3

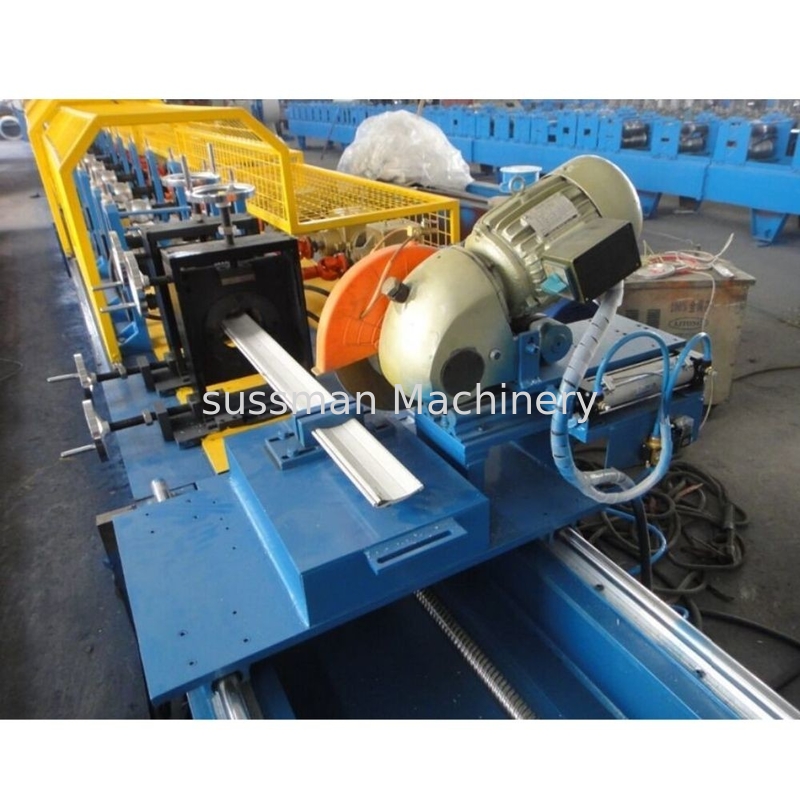

Forming Machine Pictures

Loading pictures

Transportation

All goods will be shipped to your country, containers number will be decided with how many machines would you choose

Quality Control
1.We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.
