Octagonal Pipe Full Automatic Roll Forming Machine Water Cooling 40mm 50mm 60mm

Full Automatic Octagonal Pipe Water Cooling Roll Forming Machine 40mm 50mm 60mm 70mm 80mm

Applications

Be the series part of shutter door.

Octagon Pipe Technical Parameter

Item NO	Description	Offered specification
1	Roll forming machine
2	Rolling speed	30m/min
3	Rolling thickness	0.4-1.2mm
4	Raw material	Galvanized steel coils
5	Main motor	7.5kw
6	dimension	7500×700×1000(mm)
7	Roller stations	About 20 stations
8	Roller material	45#forge steel, coated with chrome
9	Shaft material	45# steel
10	Material of cutting	Cr12 quenching treatment
11	Tolerance	+-2mm
12	Voltage	380v, 50hz, 3phases

1. Machine specification: forming thickness)0.4-1.2mm stainless steel strength≤G250Mpa
2. Forming speed: 30M/min (EXCLUDING CUTTING STOP TIME)
3. Forming roller: about 20stations
4. Main motor power: 7.5KW
5. Roller material: 45# forged steel, surface coated with chrome
6. Main shaft material: 45# steel
7. Main axis dia.: 70mm
8. Hydraulic cutting pressure: 10-12Mpa
9. Cutting method: Electric powered saw cutting, cutting after roll forming.
10. Cutting blade material: Cr12 quenching treatment
11. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
12. Wig welding device
13. water cooling system

Octagon Pipe Main Components

Working Flow of Octagon Pipe

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables





Profiles of Octagon Pipe

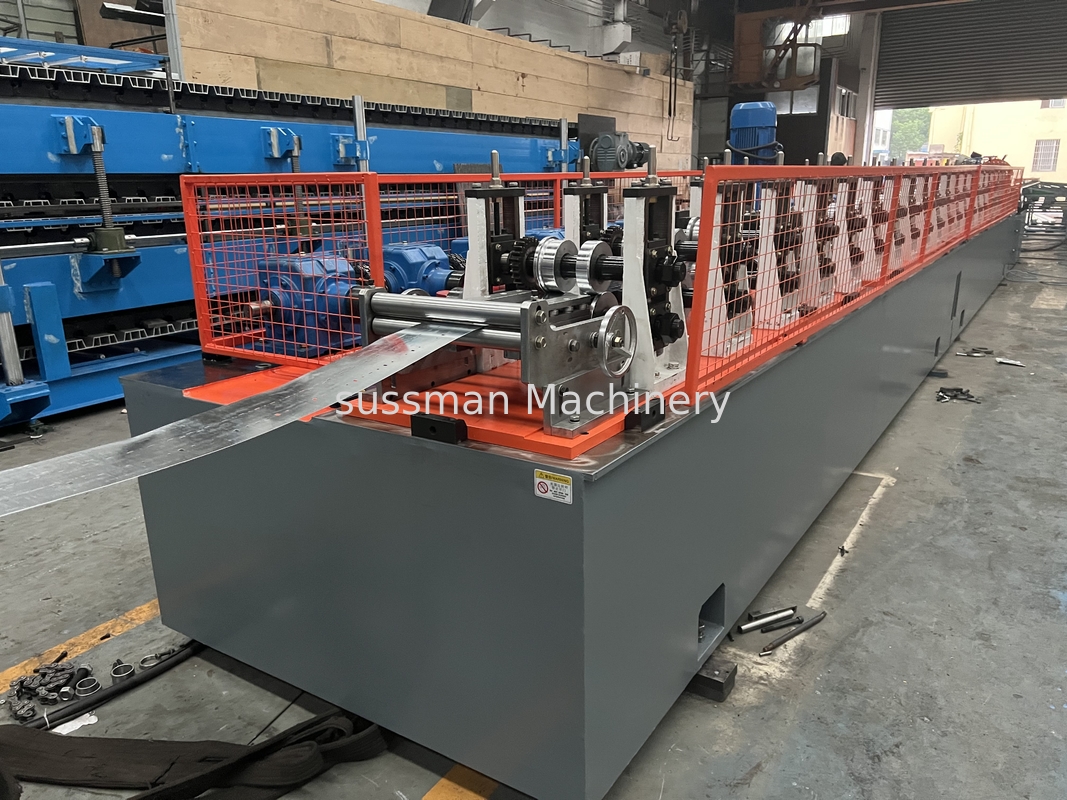

Machine Photo

Packaging and delivery

Before loading to the container, we will check the machine first

Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery


Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.

At last, we will take photos for customer when loading to container
